MIC5316-GW3YMT

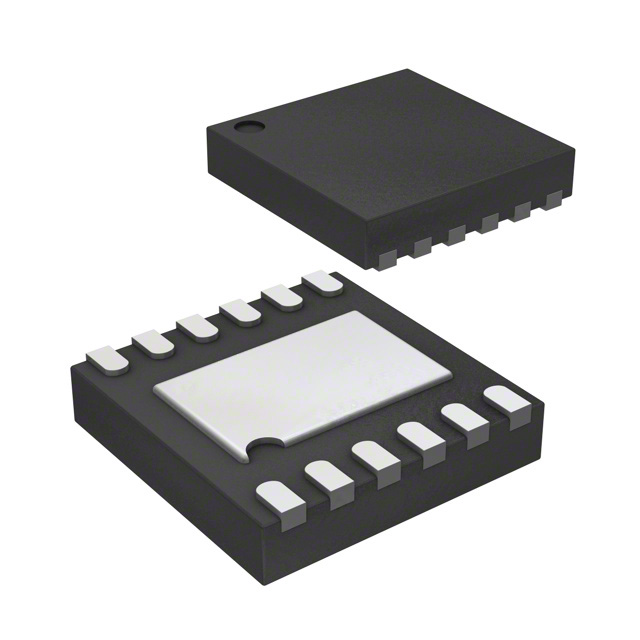

lmages are for reference only.MIC5316-GW3YMT
LOW VOLTAGE DUAL 300 MA LDO WITH
Datasheet12-UFDFN Exposed Pad, 12-TMLF®
66,661 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA 12-TMLF® (2.5x2.5)
MIC5316-GW3YMT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.1V, 1.8V |
| Voltage - Output (Max) | 1.6V |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 µA |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad, 12-TMLF® |
| Supplier Device Package | 12-TMLF® (2.5x2.5) |
| Base Product Number | MIC5316 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC5316-GW3YMT-TR | MIC5316-F4CYMT | MIC5316-F4CYMT-TR | MIC5316-F5CYMT-TR |
| Manufacturer | Microchip Technology | Micrel Inc. | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.1V/1.8V 12TMLF | LOW VOLTAGE DUAL 300 MA LDO WITH | IC REG LINEAR 1V/1.5V 12TMLF | IC REG LINEAR 1V/1.5V 12TMLF |
| Series | Microchip Technology | Micrel Inc. | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
