MIC5320-SGYML

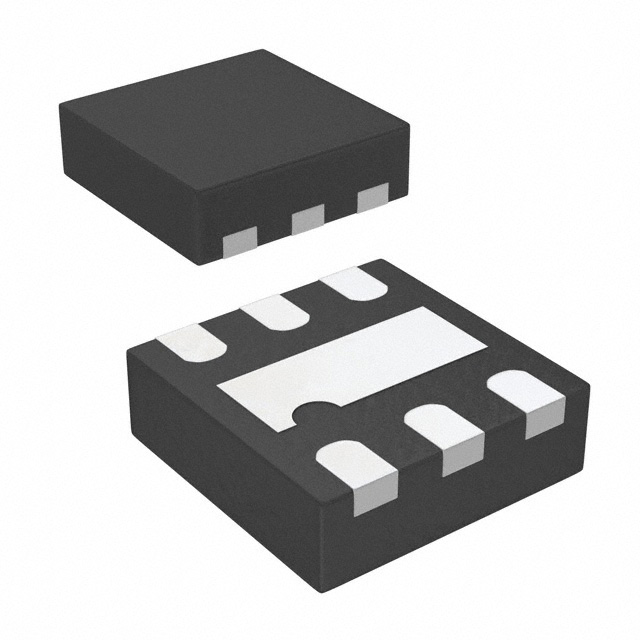

lmages are for reference only.MIC5320-SGYML
HIGH-PERFORMANCE DUAL 150 MILLAM
Datasheet6-WFDFN Exposed Pad, 6-MLF®
86,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 2 Output 150mA, 150mA 6-MLF® (1.6x1.6)
MIC5320-SGYML
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 µA |
| PSRR | 65dB ~ 45dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-MLF® (1.6x1.6) |
| Base Product Number | MIC5320 |
| Current - Supply (Max) | 190 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC5320-SGYML-TR | MIC5320-SGYMT | MIC5320-SGYMT-TR | MIC5320-SGYD6 |
| Manufacturer | Microchip Technology | Micrel Inc. | Microchip Technology | Micrel Inc. |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | Not applicable |
| Description | IC REG LINEAR 1.8V/3.3V 6MLF | HIGH-PERFORMANCE DUAL 150 MILLAM | IC REG LINEAR 1.8V/3.3V 6TMLF | HIGH-PERFORMANCE DUAL 150 MILLAM |
| Series | Microchip Technology | Micrel Inc. | Microchip Technology | Micrel Inc. |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
