MIC5504-2.5YMT-TR
lmages are for reference only.MIC5504-2.5YMT-TR
IC REG LINEAR 2.5V 300MA 4DFN
Datasheet4-UDFN Exposed Pad
19,556 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-DFN (1x1)
MIC5504-2.5YMT-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 55 µA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-DFN (1x1) |
| Base Product Number | MIC5504 |
| Current - Supply (Max) | 65 µA |
| Product Attribute |  |
 |
 |
 |

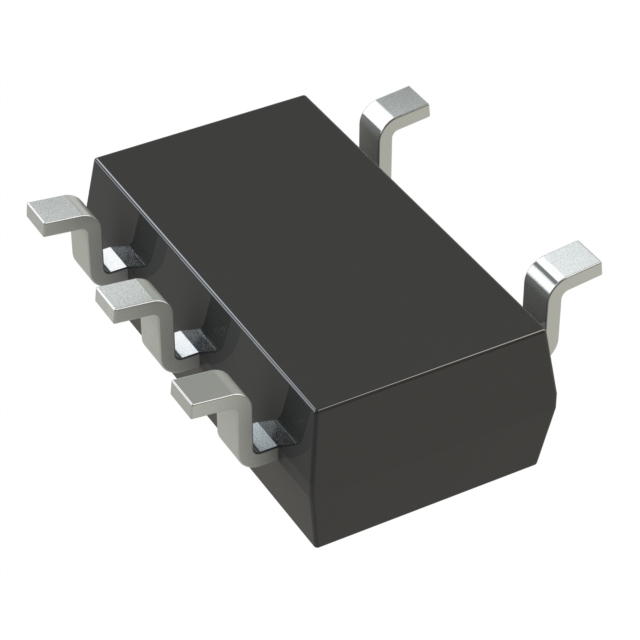

| Part Number | MIC5504-2.5YMT-T5 | MIC5504-2.5YMT-TZ | MIC5504-2.5YM5-T5 | MIC5504-2.5YM5-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2.5V 300MA 4DFN | IC REG LINEAR 2.5V 300MA 4DFN | IC REG LINEAR 2.5V 300MA SOT23-5 | IC REG LINEAR 2.5V 300MA SOT23-5 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
