MIC94066YML
lmages are for reference only.MIC94066YML
DUAL HIGH SIDE POWER SWITCHES
Datasheet8-VFDFN Exposed Pad, 8-MLF®
16,268 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 P-Channel 2A 8-MLF® (2x2)
MIC94066YML
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 85mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLF® (2x2) |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® |
| Base Product Number | MIC94066 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

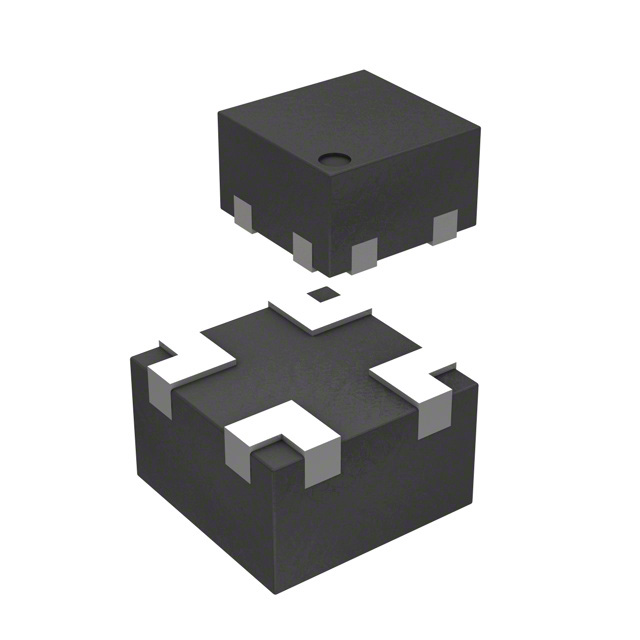

| Part Number | MIC94066YML-TR | MIC94040YFL-TR | MIC94041YFL-TR | MIC94042YFL-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH P-CHAN 1:1 8MLF | IC PWR SWITCH P-CHAN 1:1 4MLF | IC PWR SWITCH P-CHAN 1:1 4MLF | IC PWR SWITCH P-CHAN 1:1 4MLF |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
