MIN02-002EC690J-F

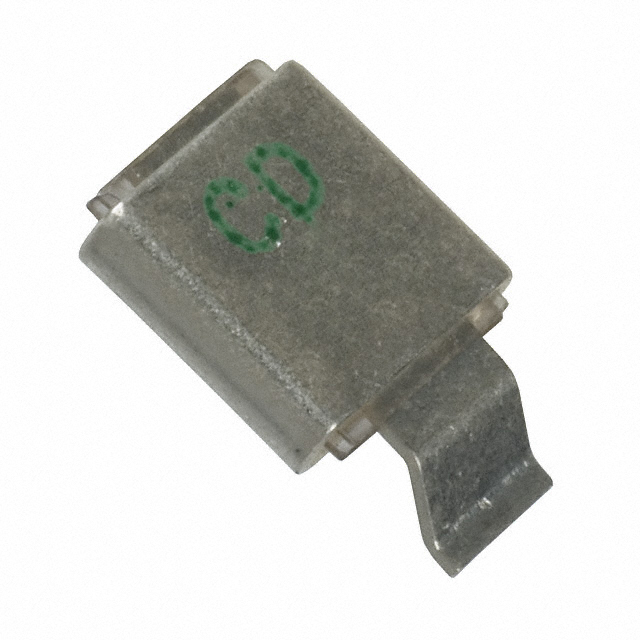

lmages are for reference only.MIN02-002EC690J-F
CAP MICA 69PF 5% 300V SMD
DatasheetNonstandard SMD
12,375 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
69 pF Mica Capacitor 300 V Nonstandard SMD
MIN02-002EC690J-F
| Category | Capacitors - Mica and PTFE Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | MIN |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 69 pF |
| Tolerance | ±5% |
| Voltage - Rated | 300 V |
| Dielectric Material | Mica |
| Operating Temperature | -55°C ~ 200°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Lead Spacing | - |
| Features | RF, High Frequency |
| Size / Dimension | 0.218" L x 0.400" W (5.54mm x 10.16mm) |
| Height - Seated (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIN02-002EC101G-F | MIN02-002EC101G-TF | MIN02-002EC101J-F | MIN02-002EC101J-TF |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP MICA 100PF 2% 300V SMD | CAP MICA 100PF 2% 300V SMD | CAP MICA 100PF 5% 300V SMD | CAP MICA 100PF 5% 300V SMD |
| Series | MIN | MIN | MIN | MIN |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
