MKP383320100JC02Z0
lmages are for reference only.MKP383320100JC02Z0
CAP FILM 0.02UF 5% 1KVDC RADIAL
DatasheetRadial
81,900 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.02 µF Film Capacitor 350V 1000V (1kV) Polypropylene (PP), Metallized Radial
MKP383320100JC02Z0
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP383 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.02 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 350V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.236" W (17.50mm x 6.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

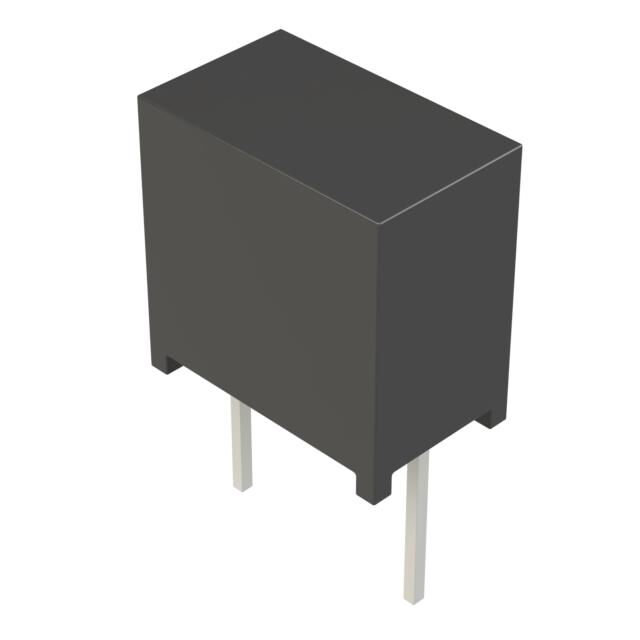

| Part Number | MKP383320100JC02R0 | MKP383320100JC02Z0 | MKP383320100JF02W0 | MKP383320100JFI2B0 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.02UF 5% 1KVDC RADIAL | CAP FILM 0.02UF 5% 1KVDC RADIAL | CAP FILM 0.02UF 5% 1KVDC RADIAL | CAP FILM 0.02UF 5% 1KVDC RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
