MLG0402P24NJT000

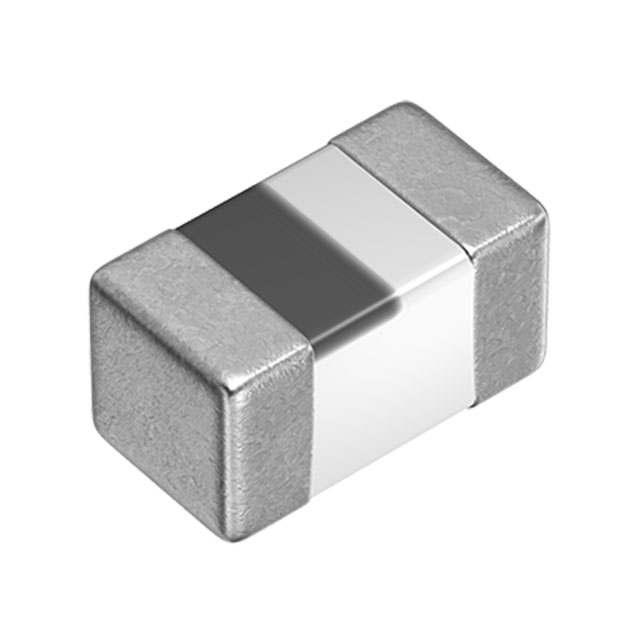

lmages are for reference only.MLG0402P24NJT000
FIXED IND 24NH 200MA 3.2 OHM SMD
Datasheet01005 (0402 Metric)
93,754 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24 nH Unshielded Multilayer Inductor 200 mA 3.2Ohm Max 01005 (0402 Metric)
MLG0402P24NJT000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MLG-P |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Non-Magnetic |
| Inductance | 24 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.2Ohm Max |
| Q @ Freq | 7 @ 500MHz |
| Frequency - Self Resonant | 2GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Supplier Device Package | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.009" (0.22mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLG0402P24NHT000 | MLG0402P0N2BT000 | MLG0402P0N2CT000 | MLG0402P0N3BT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 24NH 200MA 3.2 OHM SMD | FIXED IND 0.2NH 350MA 100MOHM SM | FIXED IND 0.2NH 350MA 100MOHM SM | FIXED IND 0.3NH 350MA 100MOHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
