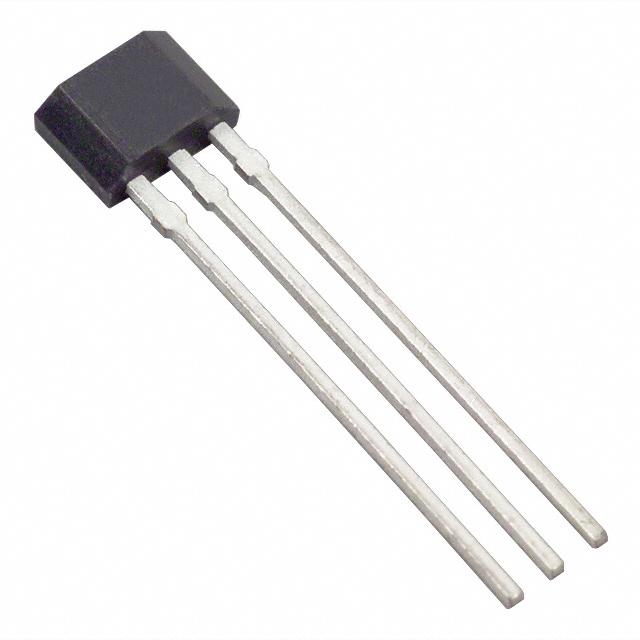

MLX90242LUA-GAA-000-BU
lmages are for reference only.MLX90242LUA-GAA-000-BU
SENSOR HALL EFFECT ANALOG TO92-3
DatasheetTO-226-3, TO-92-3 Short Body
92,064 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Single Axis TO-92-3
MLX90242LUA-GAA-000-BU
| Category | Sensors, Transducers - Magnetic Sensors - Linear-Compass ICs |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Hall Effect |
| Axis | Single |
| Output Type | Analog Voltage |
| Sensing Range | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Supply (Max) | 4.5mA |
| Current - Output (Max) | 100µA |
| Resolution | - |
| Bandwidth | - |
| Operating Temperature | -40°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Features | - |
| Supplier Device Package | TO-92-3 |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Base Product Number | MLX90242 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90242LUA-GAA-000-RE | MLX90242LUA-GAA-000-SP | MLX90242ESE-GAA-000-RE | MLX90242ESE-GAA-000-SP |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR HALL EFFECT ANALOG TO92-3 | SENSOR HALL EFFECT ANALOG TO92-3 | SENSOR HALL ANALOG TSOT23-3 | SENSOR HALL EFFECT ANALOG TSOT3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
