MLX90377GGO-ADB-310-SP

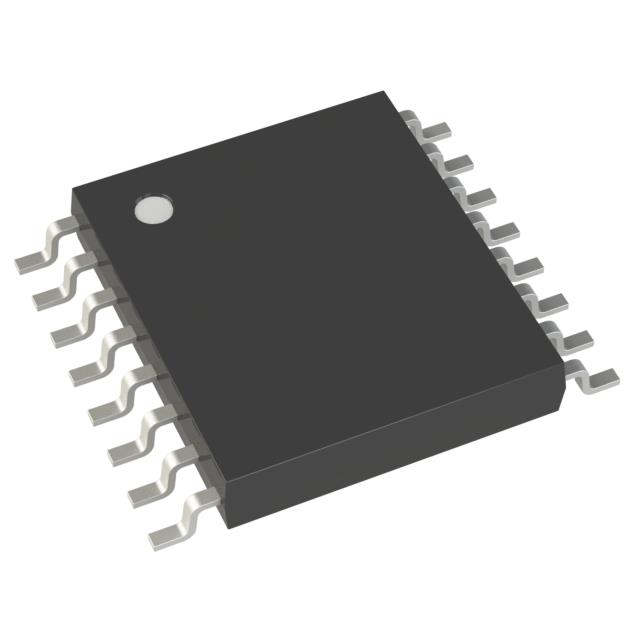

lmages are for reference only.MLX90377GGO-ADB-310-SP
SENSOR RTRY/LNR ANLG/PWM 16TSSOP
Datasheet16-TSSOP (0.173", 4.40mm Width)
23,997 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included Gull Wing
MLX90377GGO-ADB-310-SP
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog Voltage, PWM |
| Output Signal | Programmable |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 160°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90377GGO-ADB-310-RE | MLX90377GGO-ADB-310-TU | MLX90377GGO-ADB-210-RE | MLX90377GGO-ADB-210-SP |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR MAGNET POSITION 16TSSOP | SENSOR RTRY/LNR ANLG/PWM 16TSSOP | SENSOR MAGNET POSITION 16TSSOP | TRIAXIS POSITION SENSOR - PERFOR |
| Series | Triaxis® | - | Triaxis® | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Bulk |
