MLX91209LVA-CAR-003-RE

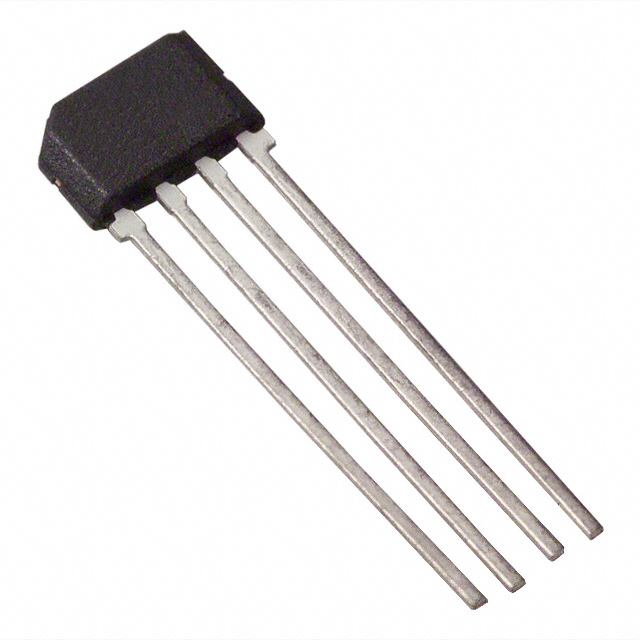

lmages are for reference only.MLX91209LVA-CAR-003-RE
GEN2 HISPEED CONV.HALL PROG.CURR
Datasheet4-SSIP Module
43,309 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Current Sensor 1 Channel Hall Effect, Open Loop Bidirectional 4-SSIP Module
MLX91209LVA-CAR-003-RE
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Open Loop |
| Current - Sensing | - |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 19mV/mT |
| Frequency | DC ~ 250kHz |
| Linearity | ±0.4% |
| Accuracy | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Response Time | 4µs |
| Current - Supply (Max) | 14mA |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | 4-SSIP Module |
| Supplier Device Package | 4-SIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX91209LVA-CAR-001-RE | MLX91209LVA-CAA-000-BU | MLX91209LVA-CAA-000-CR | MLX91209LVA-CAA-000-SP |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT HALL 15MV/MT 4SIP | SENSOR CURRENT HALL 45MT AC/DC | SENSOR CURRENT HALL 45MT AC/DC | IC CURRENT SENSOR AUTO 4SIP |
| Series | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Bulk |
