MMBZ10VAL-7-F

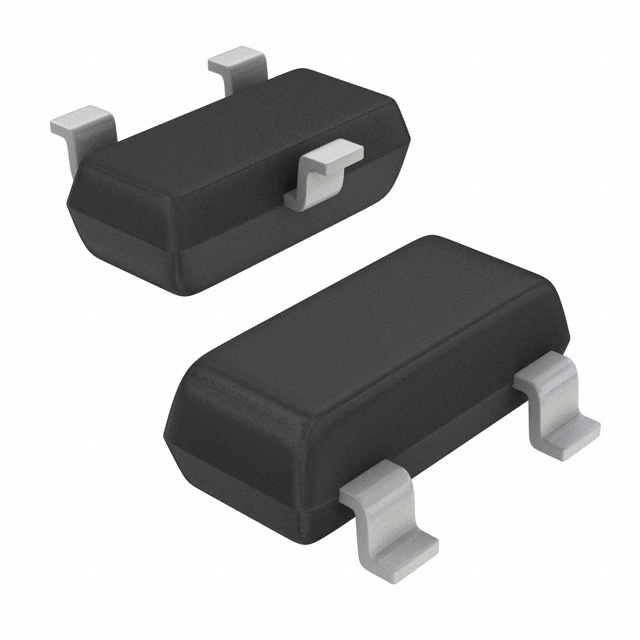

lmages are for reference only.MMBZ10VAL-7-F
TVS DIODE 6.5VWM 14.2VC SOT23
DatasheetTO-236-3, SC-59, SOT-23-3
41,182 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.2V Clamp 1.7A Ipp Tvs Diode Surface Mount SOT-23-3
MMBZ10VAL-7-F
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.5V |
| Voltage - Breakdown (Min) | 9.5V |
| Voltage - Clamping (Max) @ Ipp | 14.2V |
| Current - Peak Pulse (10/1000µs) | 1.7A |
| Power - Peak Pulse | 24W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | MMBZ10 |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MMBZ10VAL-7 | MMBZ10VAL,215 | MMBZ10VALA-7 | MMBZ10VALAQ-7 |
| Manufacturer | Diodes Incorporated | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 6.5VWM 14.2VC SOT23 | TVS DIODE 6.5VWM 14.2VC TO236AB | TRANSIENT VOLTAGE SUPPRESSOR PP | TRANSIENT VOLTAGE SUPPRESSOR PP |
| Series | Diodes Incorporated | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
