MMBZ30VALYT116

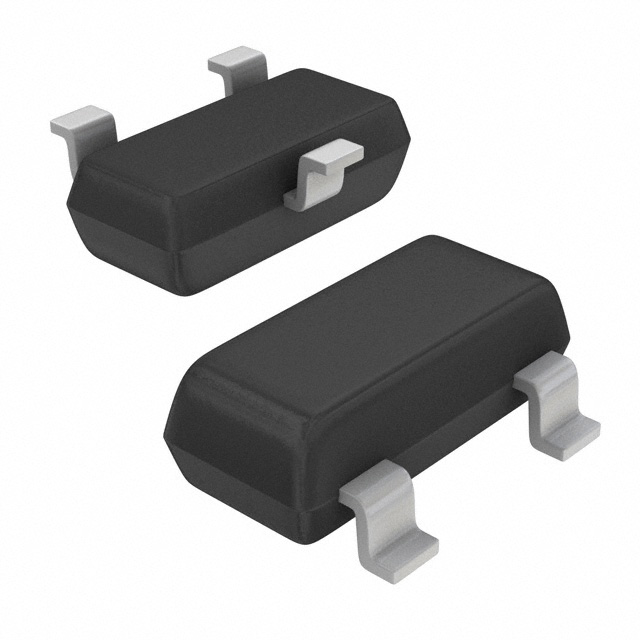

lmages are for reference only.MMBZ30VALYT116
24V, SOT-23, DUAL LINE, ANODE CO
DatasheetTO-236-3, SC-59, SOT-23-3
46,091 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
43V Clamp 950mA Ipp Tvs Diode Surface Mount SOT-23
MMBZ30VALYT116
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 43V |
| Current - Peak Pulse (10/1000µs) | 950mA |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | - |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MMBZ30VALFHT116 | MMBZ30VALT116 | MMBZ30VALYFHT116 | MMBZ30VAT-QR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 24VWM 43VC SSD3 | TVS DIODE 24VWM 43VC SOT23 | 24V, SOT-23, DUAL LINE, ANODE CO | MMBZ30VAT-Q/SOT23/TO-236AB |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Nexperia USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
