MP18021HN-A-LF-Z

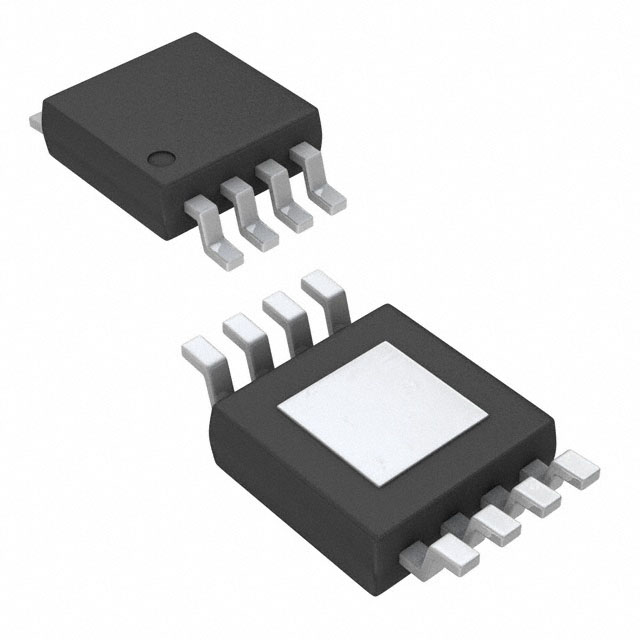

lmages are for reference only.MP18021HN-A-LF-Z
IC GATE DRVR HALF-BRIDGE 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
18,326 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half-Bridge Gate Driver IC Non-Inverting 8-SOICE
MP18021HN-A-LF-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V |
| Rise / Fall Time (Typ) | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOICE |
| Base Product Number | MP18021 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MP18021HN-A-LF | MP18021HN-A-LF-P | MP18021HN-LF | MP18021HN-LF-P |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC |
| Series | - | MP | - | MP |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
