MP506W-BP
lmages are for reference only.MP506W-BP
BRIDGE RECT 1P 600V 50A MP-50WW
Datasheet4-Square, MP-50W
10,948 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 600 V Through Hole MP-50W
MP506W-BP
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 25 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, MP-50W |
| Supplier Device Package | MP-50W |
| Base Product Number | MP506 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MP506W | MP5005-BP | MP5005W-BP | MP501-BP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

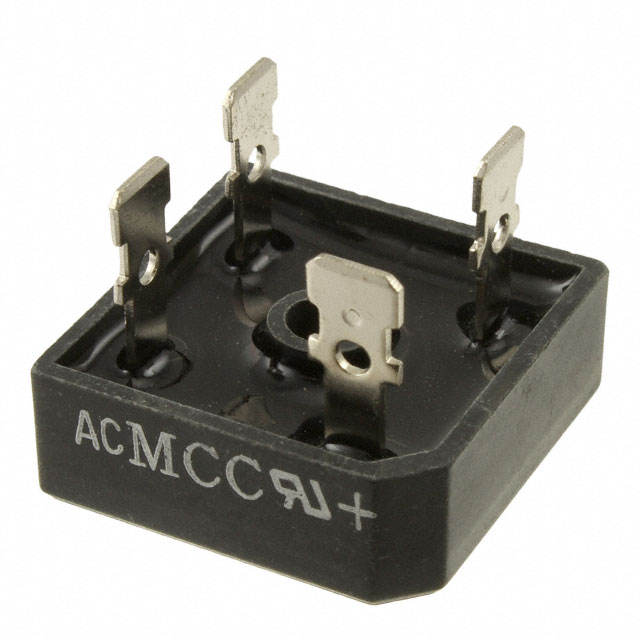

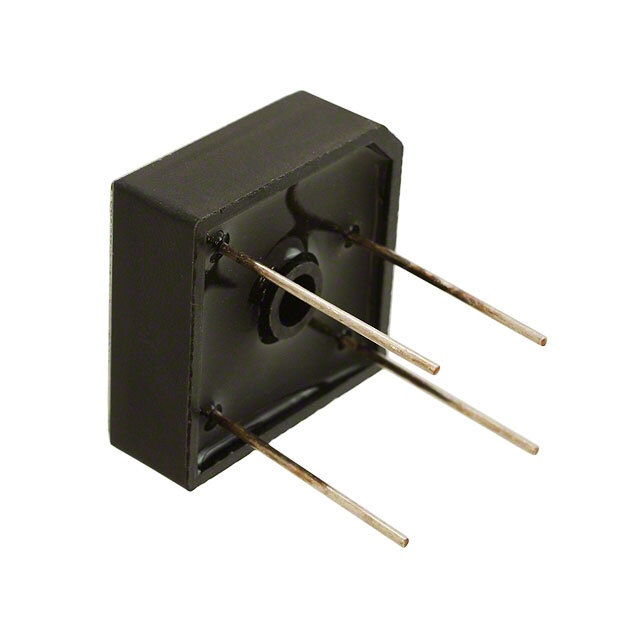

| Description | BRIDGE RECT 1P 600V 50A MP-50WW | BRIDGE RECT 1PHASE 50V 50A MP-50 | BRIDGE RECT 1P 50V 50A MP-50WW | BRIDGE RECT 1P 100V 50A MP-50 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
