MPG06GHE3_A/54

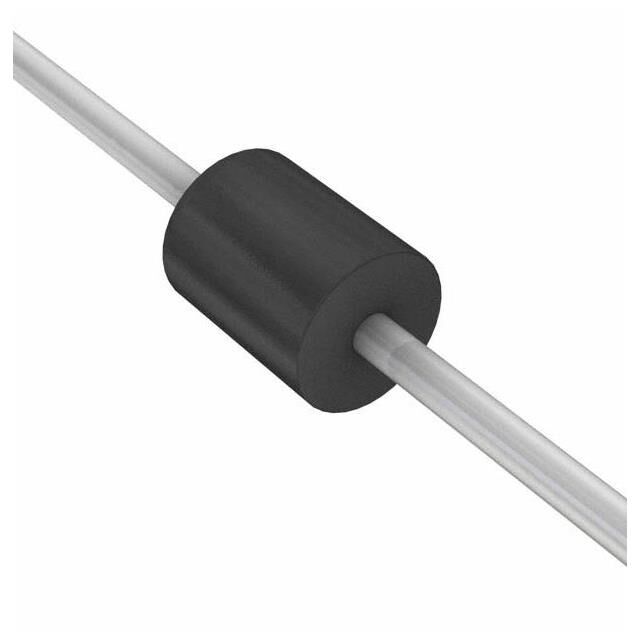

lmages are for reference only.MPG06GHE3_A/54
DIODE GEN PURP 400V 1A MPG06
DatasheetMPG06, Axial
19,481 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 400 V 1A Through Hole MPG06
MPG06GHE3_A/54
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 600 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | MPG06, Axial |
| Supplier Device Package | MPG06 |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MPG06 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MPG06GHE3_A/100 | MPG06GHE3_A/53 | MPG06GHE3_A/73 | MPG06GHE3/54 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 400V 1A MPG06 | DIODE GEN PURP 400V 1A MPG06 | DIODE GEN PURP 400V 1A MPG06 | DIODE GEN PURP 400V 1A MPG06 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Tape & Reel (TR) |
