MPL-AL5050-100

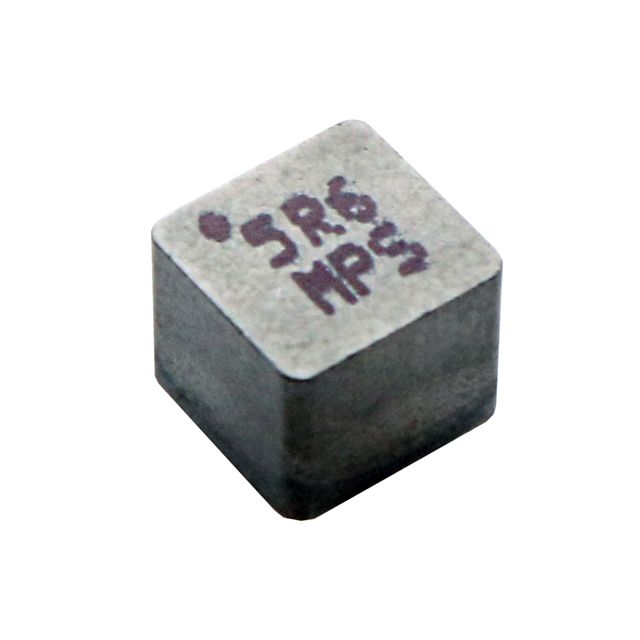

lmages are for reference only.MPL-AL5050-100
FIXED IND 10UH 4.8A 37 MOHM SMD
Datasheet2-SMD
11,089 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Molded Inductor 4.8 A 37mOhm 2-SMD
MPL-AL5050-100
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MPL-AL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | - |
| Current Rating (Amps) | 4.8 A |
| Current - Saturation (Isat) | 5.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 37mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | MPL-AL5050 |
| Product Attribute |  |
 |
|
 |
| Part Number | MPL-AL5050-5R6 | MPL-AL5050-6R8 | MPL-AL5050-6R8 | MPL-AL5050-8R2 |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.6UH 6.8A 20 MOHM SMD | FIXED IND 6.8UH 6.1A 25 MOHM SMD | FIXED IND 6.8UH 6.1A 25 MOHM SMD | FIXED IND 8.2UH 5.8A 28 MOHM SMD |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
