MPL-AY1265-1R0
lmages are for reference only.MPL-AY1265-1R0
FIXED IND 1UH 25.5A 1.5 MOHM SMD
Datasheet2-SMD, J-Lead
35,777 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Unshielded Molded Inductor 25.5 A 1.5mOhm 2-SMD, J-Lead
MPL-AY1265-1R0
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MPL-AY |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | - |
| Current Rating (Amps) | 25.5 A |
| Current - Saturation (Isat) | 43A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.496" W (13.50mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | MPL-AY1265 |
| Product Attribute |  |
 |
 |
|

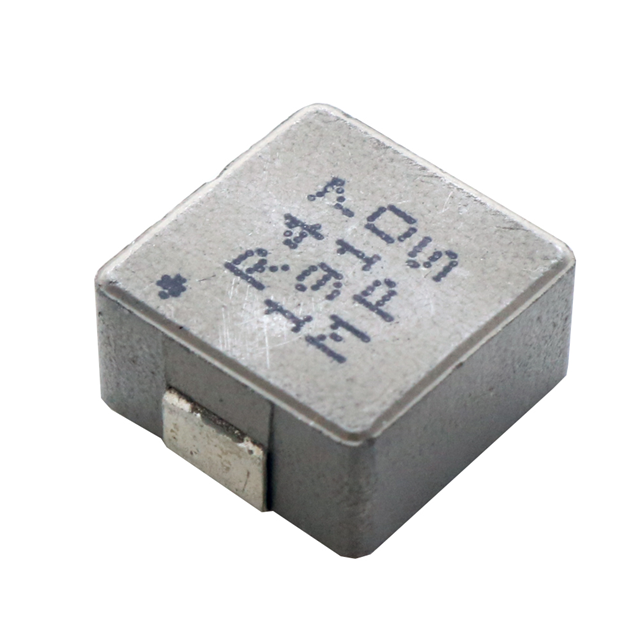

| Part Number | MPL-AY1265-1R2 | MPL-AY1265-1R5 | MPL-AY1265-1R8 | MPL-AY1265-100 |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.2UH 24A 1.8 MOHM SMD | FIXED IND 1.5UH 22A 2.3 MOHM SMD | FIXED IND 1.8UH 20A 3.3 MOHM SMD | FIXED IND 10UH 10.7A 13.3MOHM SM |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
