MPM3612GLQ-P
lmages are for reference only.MPM3612GLQ-P
3V TO 22V INPUT, 1A, ULTRA LOW 5
Datasheet10-FLGA Exposed Pad
47,820 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 21.6V 1A 3V - 22V Input
MPM3612GLQ-P
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MPM3612 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 22V |
| Voltage - Output 1 | 0.6 ~ 21.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-FLGA Exposed Pad |
| Size / Dimension | 0.12" L x 0.12" W x 0.08" H (3.0mm x 3.0mm x 2.0mm) |
| Supplier Device Package | 10-LGA (3x3) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute | |
|
|
 |

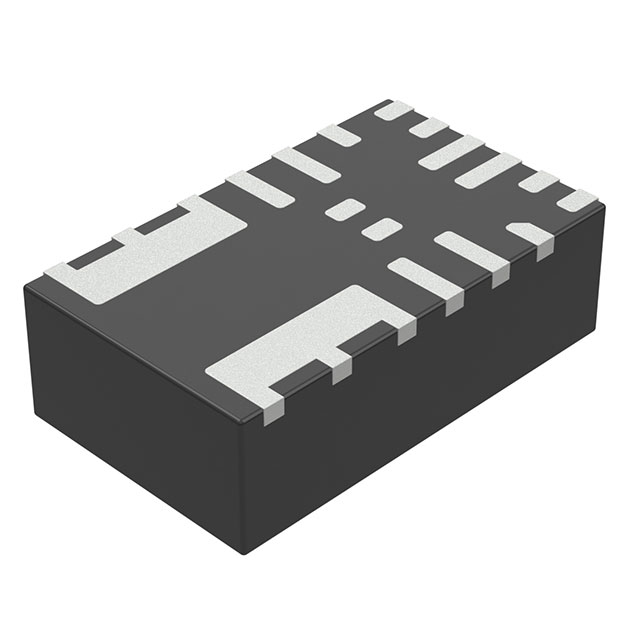

| Part Number | MPM3612GLQ-33-P | MPM3612GLQ-33-Z | MPM3612GLQ-Z | MPM3610AGQV-P |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 3V TO 22VINPUT,1A, ULTRA-LOW 5A | 3V TO 22VINPUT,1A, ULTRA-LOW 5A | 3V TO 22V INPUT, 1A, ULTRA LOW 5 | DC DC CONVERTER 0.8-18.48V |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
