Product CatalogPart Number
MPTR16V1000
Manufacturer
MeritekDescription
PTC RESET FUSE 16V 10A RADIAL
Datasheet
DatasheetPackage
Radial, Disc
In Stock
80,253 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MPTR16V1000
MPTR16V1000
lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 16V 10 A Ih Through Hole Radial, Disc
Quick Inquiry
MPTR16V1000
Specifications
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Meritek |
| Series | MPTR |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Hold (Ih) (Max) | 10 A |
| Current - Trip (It) | 17 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.650" L x 0.118" W (16.50mm x 3.00mm) |
| Height - Seated (Max) | 0.949" (24.10mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.201" (5.10mm) |
| Approval Agency | cUL, TUV, UL |
| Time to Trip | 12.5 s |
| Resistance - Initial (Ri) (Min) | 3 mOhms |
| Resistance - Post Trip (R1) (Max) | 12 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

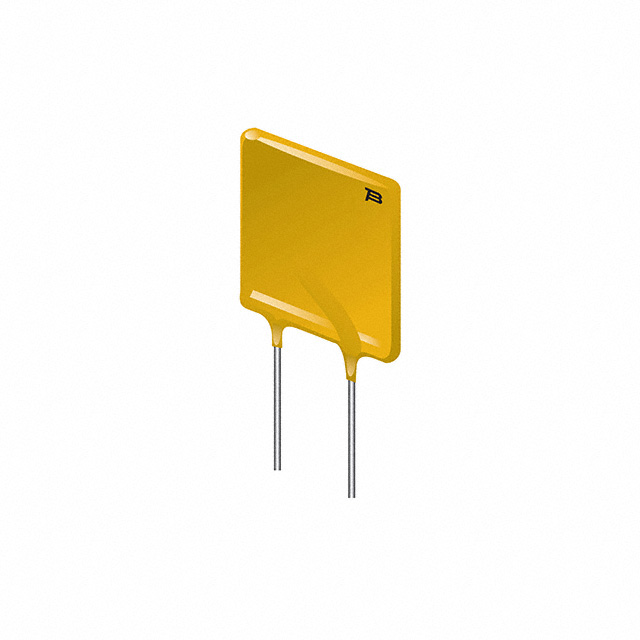

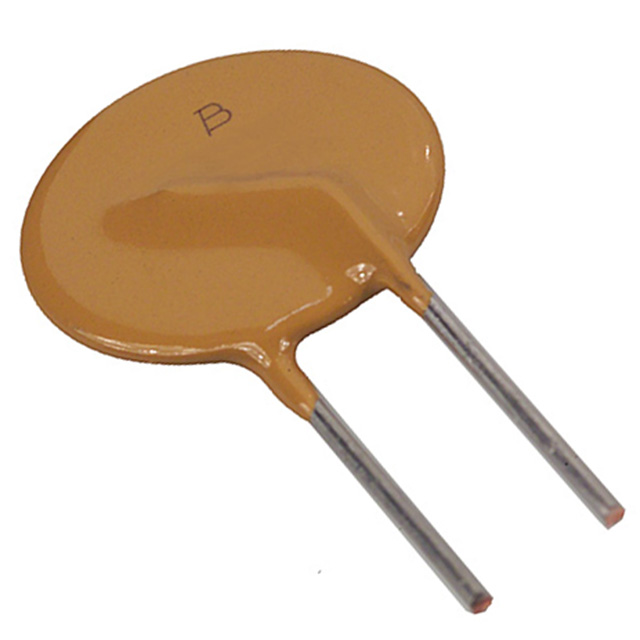

| Part Number | MPTR16V900 | MF-RX135-AP | MF-RHT550-2 | MF-R016/600-0 |
| Manufacturer | Meritek | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 16V 9A RADIAL | PTC RESET FUSE 60V 1.35A RADIAL | PTC RESET FUSE 16V 5.5A RADIAL | PTC RESET FUSE 250V 160MA RADIAL |
| Series | MPTR | Multifuse®, MF-RX | Multifuse®, MF-RHT | Multifuse®, MF-R/600 |
| Packaging | Bulk | Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
