MPTS2920L125R

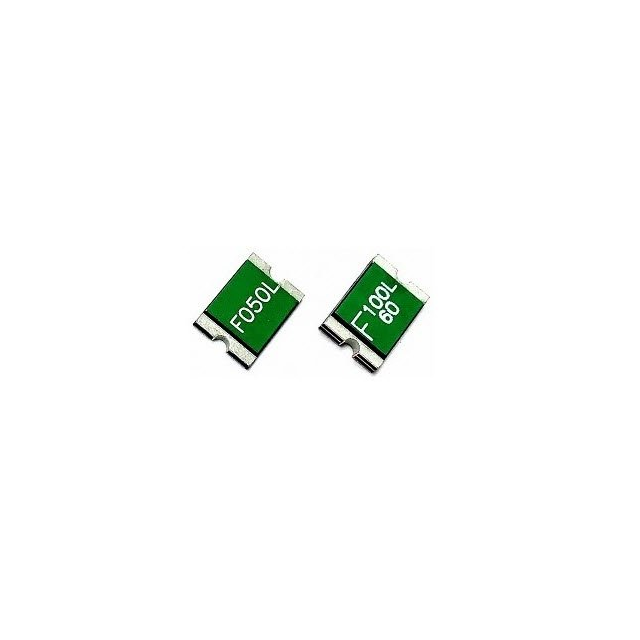

lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 33V 1.25 A Ih Surface Mount 2920 (7351 Metric), Concave
MPTS2920L125R
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Meritek |
| Series | MPTS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Hold (Ih) (Max) | 1.25 A |
| Current - Trip (It) | 2.5 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
| Approval Agency | cUL, TUV, UL |
| Time to Trip | 2 s |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 250 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MPTS2920L100 | MPTS2920L100R | MPTS2920L150 | MPTS2920L050R |
| Manufacturer | Meritek | Meritek | Meritek | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 33V 1.1A 2920 | PTC RESET FUSE 33V 1.1A 2920 | PTC RESET FUSE 33V 1.5A 2920 | PTC RESET FUSE 60V 0.5A 2920 |
| Series | MPTS | MPTS | MPTS | MPTS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
