MPXAZ6115AC6T1
lmages are for reference only.MPXAZ6115AC6T1
SENSOR 16.68PSIA 0.13" 4.7V
Datasheet8-SMD, Gull Wing, Top Port
25,067 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) Absolute Male - 0.13" (3.17mm) Tube 0.2 V ~ 4.7 V 8-SMD, Gull Wing, Top Port
MPXAZ6115AC6T1
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | NXP USA Inc. |
| Series | MPXAZ6115A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | MPXAZ6115 |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) |
| Output Type | Analog Voltage |
| Output | 0.2 V ~ 4.7 V |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.13" (3.17mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 58.02PSI (400kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing, Top Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

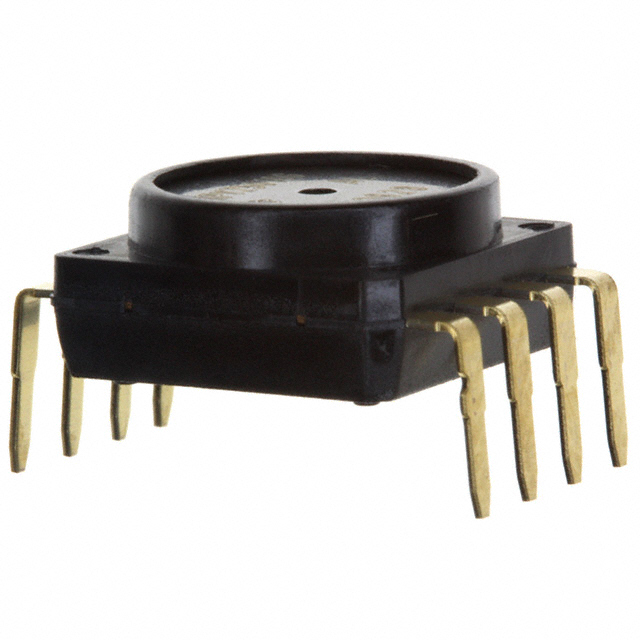

| Part Number | MPXAZ6115AC6U | MPXAZ6115A6U | MPXAZ6115A7U | MPXAZ6115AP |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 16.68PSIA 0.13" 4.7V | SENSOR 16.68PSIA 4.7V | SENSOR 16.68PSIA 0.13" 4.7V 8DIP | SENSOR 16.68PSIA 0.13" 4.7V 8SOP |
| Series | MPXAZ6115A | MPXAZ6115A | MPXAZ6115A | MPXAZ6115A |
| Packaging | Tube | Tube | Tube | Tray |
