MPXH6400AC6U
lmages are for reference only.MPXH6400AC6U
MPXH6400 - PEIZORESISTIVE SENSOR
Datasheet8-SOIC (0.335", 8.50mm Width), Top Port
50,277 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) Absolute Male - 0.13" (3.3mm) Tube 0.2 V ~ 4.8 V 8-SOIC (0.335", 8.50mm Width), Top Port
MPXH6400AC6U
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Base Product Number | - |
| Applications | Industrial Automation |
| Pressure Type | Absolute |
| Operating Pressure | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) |
| Output Type | Analog Voltage |
| Output | 0.2 V ~ 4.8 V |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.64V ~ 5.36V |
| Port Size | Male - 0.13" (3.3mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 232.06PSI (1600kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.335", 8.50mm Width), Top Port |
| Supplier Device Package | 8-SSOP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

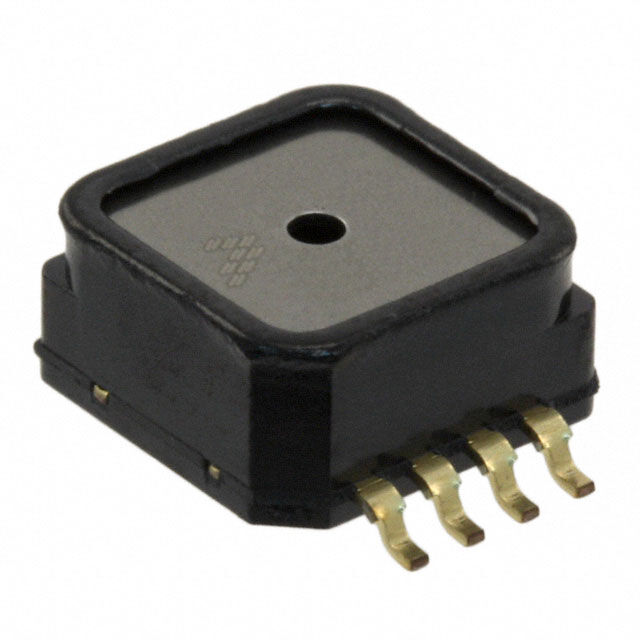

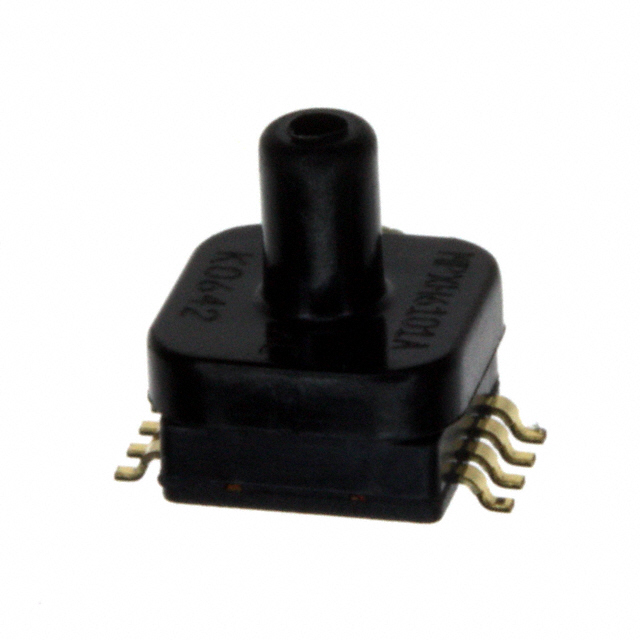

| Part Number | MPXH6400AC6T1 | MPXH6400AC6U | MPXH6400A6T1 | MPXH6400A6U |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 58.02PSIA 0.13" 4.8V SSOP | SENSOR 58.02PSIA 0.13" 4.8V SSOP | SENSOR 58.02PSIA 4.8V 8SSOP | SENSOR 58.02PSIA 4.8V 8SSOP |
| Series | MPXH6400A | MPXH6400A | MPXH6400A | MPXH6400A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) | Tube |
