MPXHZ6116A6T1
lmages are for reference only.MPXHZ6116A6T1
SENSOR 16.68PSIA 4.645V 8SSOP
Datasheet8-SOIC (0.295", 7.50mm Width)
52,240 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 2.9PSI ~ 16.68PSI (20kPa ~ 115kPa) Absolute 0.399 V ~ 4.645 V 8-SOIC (0.295", 7.50mm Width)
MPXHZ6116A6T1
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Freescale Semiconductor |
| Series | MPXHZ6116A |
| Packaging | Bulk |
| RoHS Status | |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 2.9PSI ~ 16.68PSI (20kPa ~ 115kPa) |
| Output Type | Analog Voltage |
| Output | 0.399 V ~ 4.645 V |
| Accuracy | ±1.5% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Port Style | No Port |
| Features | Temperature Compensated |
| Termination Style | Gull Wing |
| Maximum Pressure | 58.02PSI (400kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SSOP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | MPXHZ6116A6T1 | MPXHZ6116A6U | MPXHZ6115A6T1 | MPXHZ6115A6U |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 16.68PSIA 4.645V 8SSOP | SENSOR 16.68PSIA 4.645V 8SSOP | SENSOR 16.68PSIA 4.7V 8SSOP | SENSOR 16.68PSIA 4.7V 8SSOP |
| Series | MPXHZ6116A | MPXHZ6116A | MPXHZ6115A | MPXHZ6115A |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |

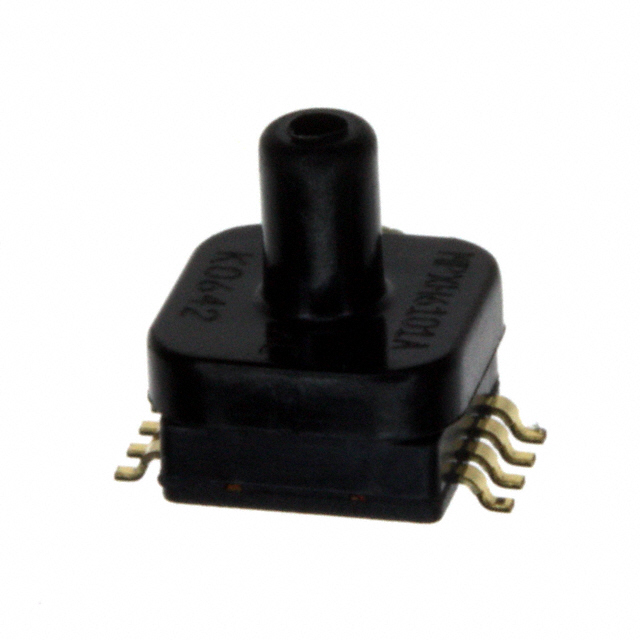

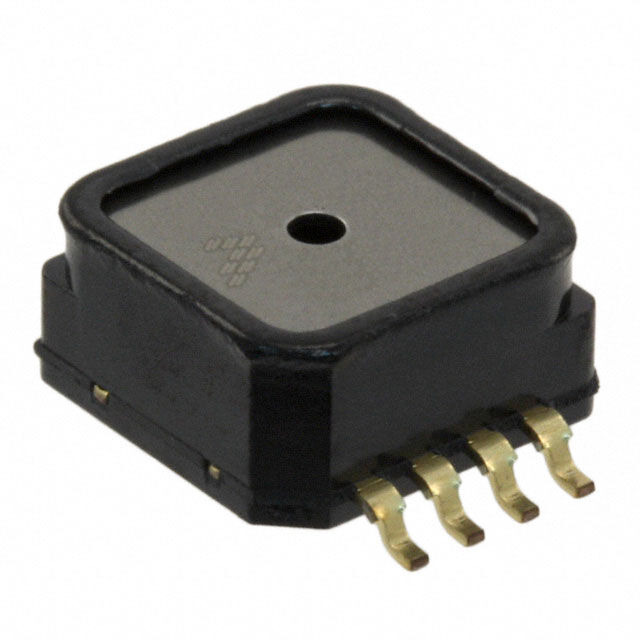

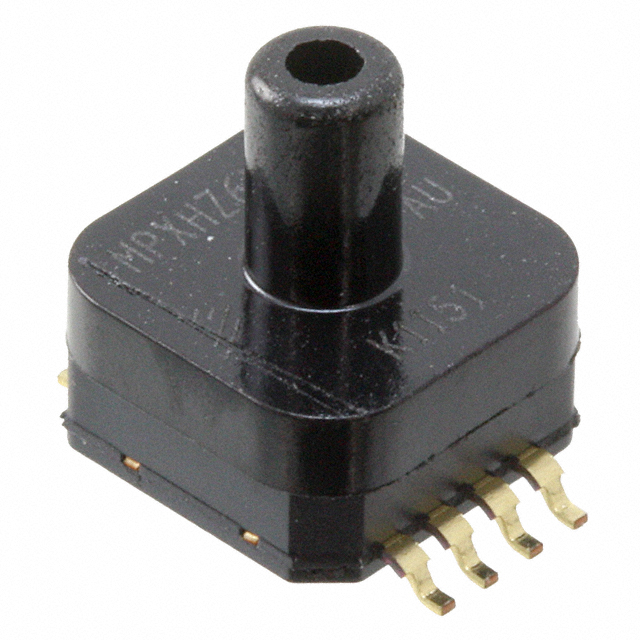

Recommended Products
