Product CatalogPart Number
MRF393
Manufacturer
MACOM Technology SolutionsDescription
RF TRANS 2NPN EMITTR 30V 744A-01
Datasheet
DatasheetPackage
744A-01
In Stock
70,175 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MRF393
MRF393
lmages are for reference only.Payment Methods
Delivery Services
RF Transistor 2 NPN (Dual) Common Emitter 30V 16A 100W Chassis Mount 744A-01, Style 1
Quick Inquiry
MRF393
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Transistor Type | 2 NPN (Dual) Common Emitter |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Gain | 8.5dB |
| Power - Max | 100W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 1A, 5V |
| Current - Collector (Ic) (Max) | 16A |
| Operating Temperature | 200°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Chassis Mount |
| Package / Case | 744A-01 |
| Supplier Device Package | 744A-01, Style 1 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

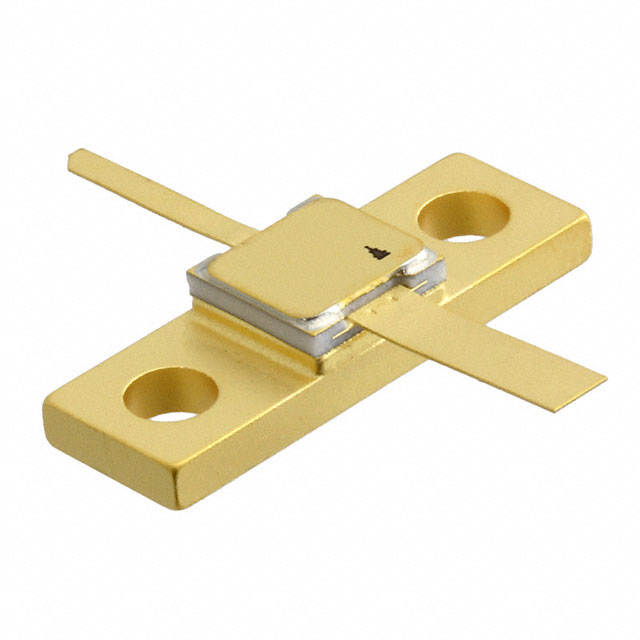

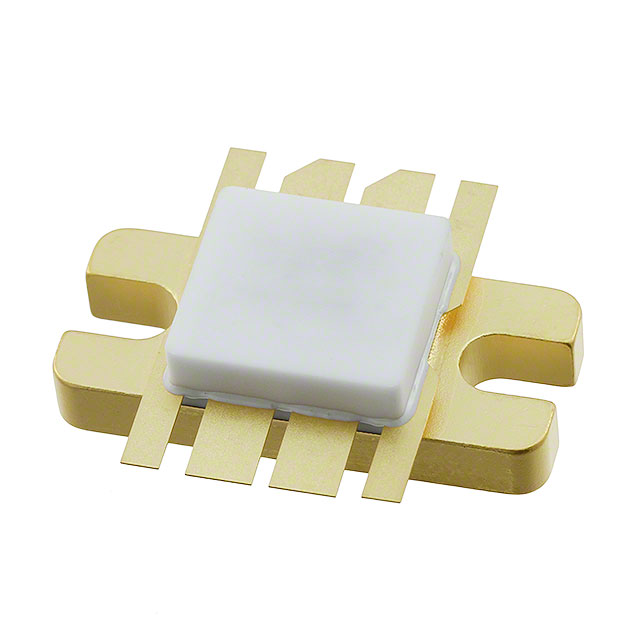

| Part Number | MRF392 | MRF10005 | MRF1000MB | MRF10031 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF TRANS 2NPN EMITTR 30V 744A-01 | TRANS 5W 960MHZ-1215MHZ | RF TRANS NPN 20V 332A-03 | RF TRANS NPN 55V 332A-03 |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
