Product CatalogPart Number
MRF5S9150HR5
Manufacturer
Freescale SemiconductorDescription
RF MOSFET LDMOS 28V NI780
Datasheet
DatasheetPackage
SOT-957A
In Stock
44,860 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MRF5S9150HR5
MRF5S9150HR5
lmages are for reference only.Payment Methods
Delivery Services
RF Mosfet 28 V 1.5 A 880MHz 19.7dB 33W NI-780H-2L
Quick Inquiry
MRF5S9150HR5
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 880MHz |
| Gain | 19.7dB |
| Voltage - Test | 28 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 1.5 A |
| Power - Output | 33W |
| Voltage - Rated | 68 V |
| Mounting Type | - |
| Package / Case | SOT-957A |
| Supplier Device Package | NI-780H-2L |
| Base Product Number | MRF5 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

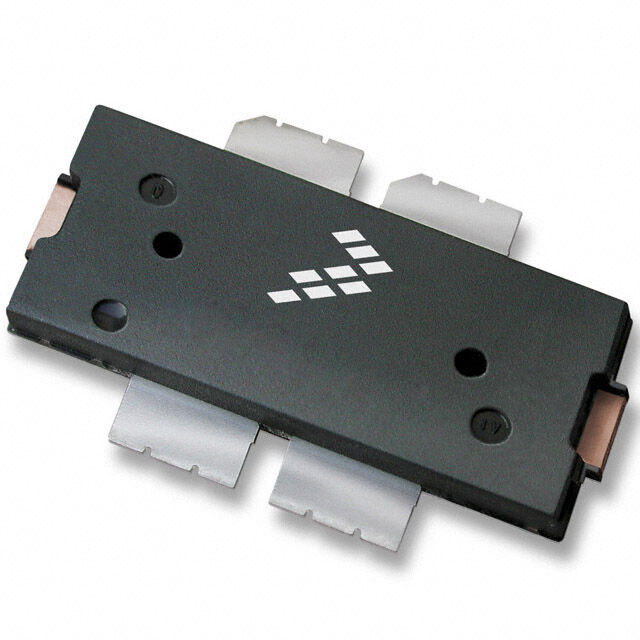

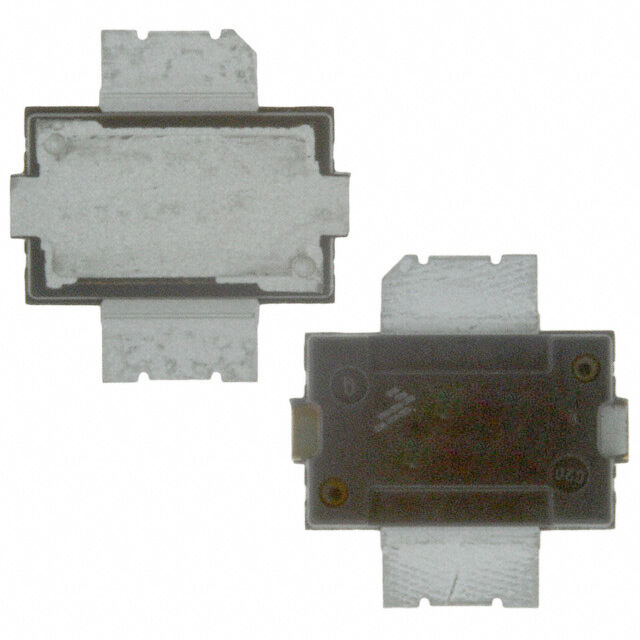

| Part Number | MRF5S9070NR1 | MRF5S9070NR5 | MRF5S9080NBR1 | MRF5S9080NR1 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 26V TO270-2 | RF MOSFET LDMOS 26V TO270-2 | RF MOSFET LDMOS 26V TO272-4 | RF MOSFET LDMOS 26V TO270-4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
