MRF6VP3091NR1

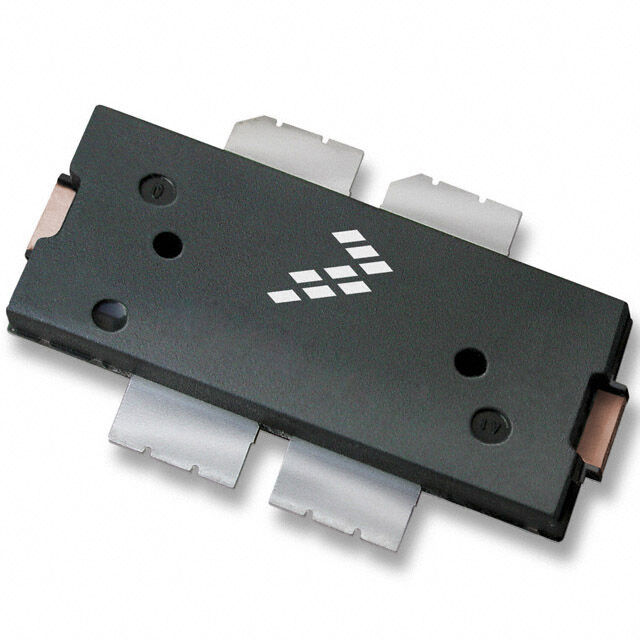

lmages are for reference only.MRF6VP3091NR1
RF MOSFET LDMOS 50V TO270-4
DatasheetTO-270AB
82,802 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 50 V 450 mA 470MHz ~ 1.215GHz 22dB 90W TO-270 WB-4
MRF6VP3091NR1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Freescale Semiconductor - NXP |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Technology | LDMOS |
| Configuration | Dual, Common Source |
| Frequency | 470MHz ~ 1.215GHz |
| Gain | 22dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | 10µA |
| Noise Figure | - |
| Current - Test | 450 mA |
| Power - Output | 90W |
| Voltage - Rated | 115 V |
| Mounting Type | Surface Mount |
| Package / Case | TO-270AB |
| Supplier Device Package | TO-270 WB-4 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | MRF6VP3091NR1 | MRF6VP3091NR5 | MRF6VP3091NBR1 | MRF6VP3091NBR1 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 50V TO270-4 | RF MOSFET LDMOS 50V TO272-4 | RF MOSFET LDMOS 50V TO272-4 | RF MOSFET LDMOS 50V TO272-4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
