MRT100KP280AE3

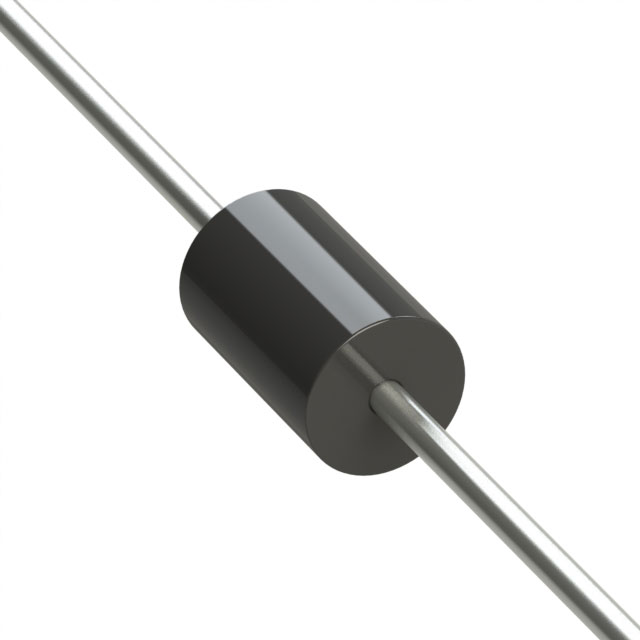

lmages are for reference only.MRT100KP280AE3
TVS DIODE 280VWM 552VC CASE 5A
DatasheetDO-204AR, Axial
60,683 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
552V Clamp Ipp Tvs Diode Through Hole Case 5A (DO-204AR)
MRT100KP280AE3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 280V |
| Voltage - Breakdown (Min) | 311V |
| Voltage - Clamping (Max) @ Ipp | 552V |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 100000W (100kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | Case 5A (DO-204AR) |
| Base Product Number | MRT100KP280 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
|
 |
| Part Number | MRT100KP280AE3/TR | MRT100KP280A | MRT100KP280A | MRT100KP280A/TR |
| Manufacturer | Microchip Technology | Microchip Technology | MDE Semiconductor Inc | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | TVS 280V 10% 100000W UNI | TVS DIODE 280VWM 552VC CASE 5A | TVS DIODE UP 280VRWM 552.0VC | TVS 280V 5% 100000W UNI |
| Series | Microchip Technology | Microchip Technology | MDE Semiconductor Inc | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Tape & Reel (TR) |
