Product Catalog

MSC360-1A-C0007-ERA180-05K

MSC360-1A-C0007-ERA180-05K

MSC360-1A-C0007-ERA180-05K

lmages are for reference only.
  • Part Number

    MSC360-1A-C0007-ERA180-05K

  • Manufacturer

    Amphenol Piher Sensing Systems
  • Description

    MINIATURE HALL-EFFECT ROTARY POS

  • Datasheet

    DatasheetDatasheet
  • Package

    Box with Wire Leads

  • In Stock

    35,145 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

Hall Effect Sensor Linear, Rotary Position Flatted Shaft Wire Leads

Quick Inquiry

MSC360-1A-C0007-ERA180-05K

Get the Price Now!

Specifications

Category Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring
Manufacturer Amphenol Piher Sensing Systems
Series MSC360
Packaging Bulk
RoHS Status ROHS3 Compliant
For Measuring Linear, Rotary Position
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 0° ~ 360°
Linear Range -
Output PWM
Output Signal Clockwise Increase
Actuator Type Flatted Shaft
Linearity ±1.5%
Resistance -
Resistance Tolerance -
Voltage - Supply 4.5V ~ 5.5V
Mounting Type Chassis Mount
Termination Style Wire Leads
Operating Temperature -40°C ~ 125°C
Package / Case Box with Wire Leads
Supplier Device Package -
Grade -
Qualification -
Base Product Number MSC360

Parts with Similar Specifications

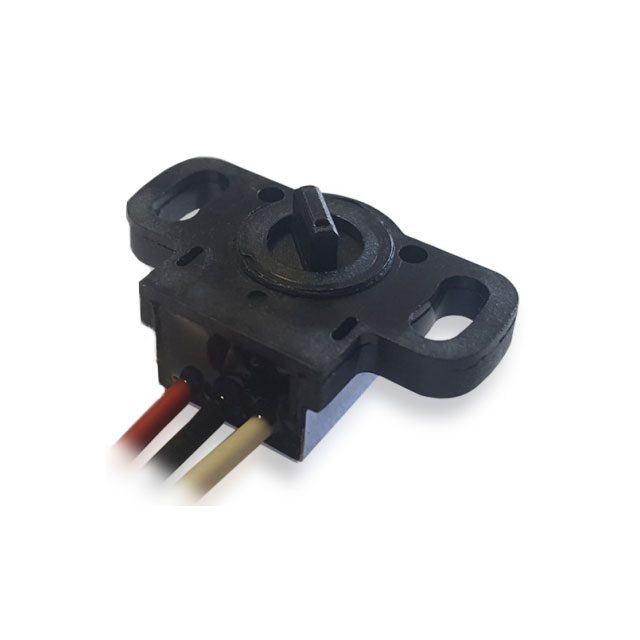

Product Attribute MSC360-1A-C0004-ERA360-05K MSC360-1A-C0022-ERA090-05K MLX90513GGO-CAA-100-SP HP-L-1000-203-3%-RLD
Part Number MSC360-1A-C0004-ERA360-05K MSC360-1A-C0022-ERA090-05K MLX90513GGO-CAA-100-SP HP-L-1000-203-3%-RLD
Manufacturer Amphenol Piher Sensing Systems Amphenol Piher Sensing Systems Melexis Technologies NV Spectra Symbol
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description MINIATURE HALL-EFFECT ROTARY POS MINIATURE HALL-EFFECT ROTARY POS INDUCTIVE POSITION SENSOR ASSP W SENSOR LINEAR 1000MM CONNECTOR
Series MSC360 MSC360 - HotPot
Packaging Bulk Bulk Bulk Box
