MSMBG2K3.3E3
lmages are for reference only.MSMBG2K3.3E3
TVS DIODE 3.3VWM 5.8VC SMBG
DatasheetDO-215AA, SMB Gull Wing
54,200 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.8V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
MSMBG2K3.3E3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microsemi Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 4.6V |
| Voltage - Clamping (Max) @ Ipp | 5.8V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 2000W (2kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
 |
 |

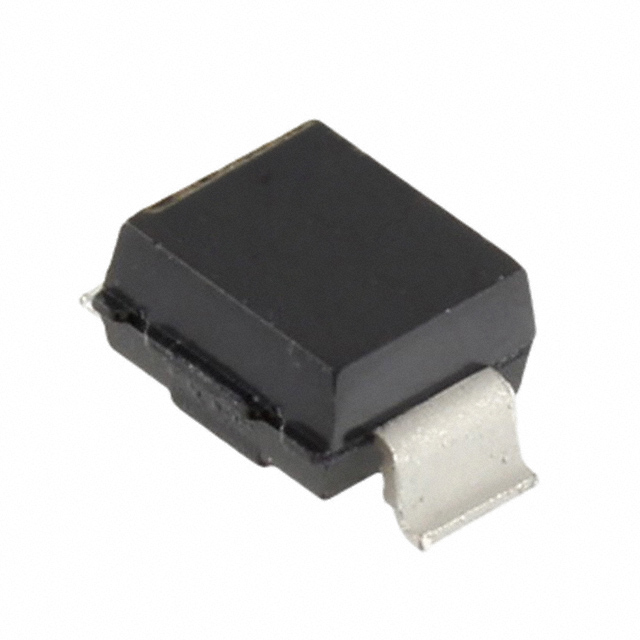

| Part Number | MSMBG2K3.3 | MSMBG20A | MSMBG20A/TR | MSMBG20AE3 |
| Manufacturer | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | TVS DIODE 3.3VWM 5.8VC SMBG | TVS DIODE 20VWM 32.4VC SMBG | TVS DIODE 20VWM 32.4VC SMBG | TVS DIODE 20VWM 32.4VC SMBG |
| Series | Microsemi Corporation | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
