Product CatalogPart Number
MSMBJ250A
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE UP 250VRWM 405VC
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
73,264 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSMBJ250A
MSMBJ250A

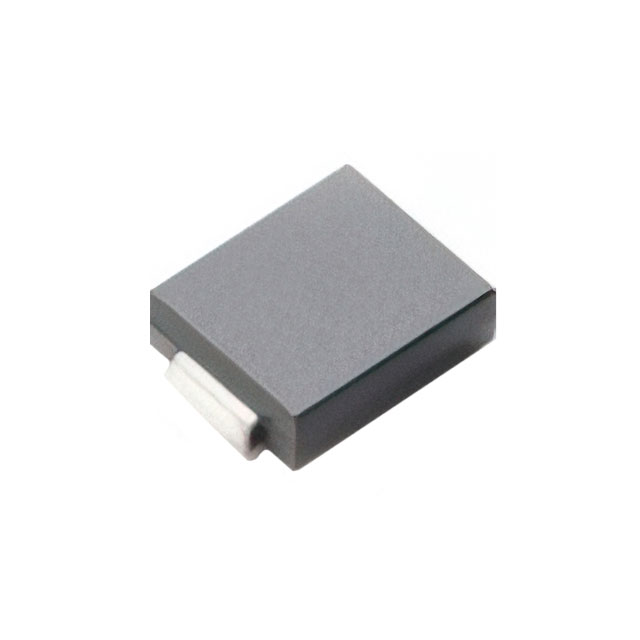

lmages are for reference only.Payment Methods
Delivery Services
405V Clamp 1.5A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Quick Inquiry
MSMBJ250A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | MSMBJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 250V |
| Voltage - Breakdown (Min) | 279V |
| Voltage - Clamping (Max) @ Ipp | 405V |
| Current - Peak Pulse (10/1000µs) | 1.5A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MSMBJ200A | MSMBJ20A | MSMBJ20CA | MSMBJ20CA/TR |
| Manufacturer | MDE Semiconductor Inc | MDE Semiconductor Inc | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | TVS DIODE UP 200VRWM 324VC | TVS DIODE UP 20VRWM 32.4VC | TVS DIODE 20VWM 32.4VC SMBJ | TVS DIODE 20VWM 32.4VC SMBJ |
| Series | MDE Semiconductor Inc | MDE Semiconductor Inc | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
