Product CatalogPart Number
MSMBJSAC8.0
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE UP 8VRWM 13.4VC
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
67,563 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MSMBJSAC8.0
MSMBJSAC8.0

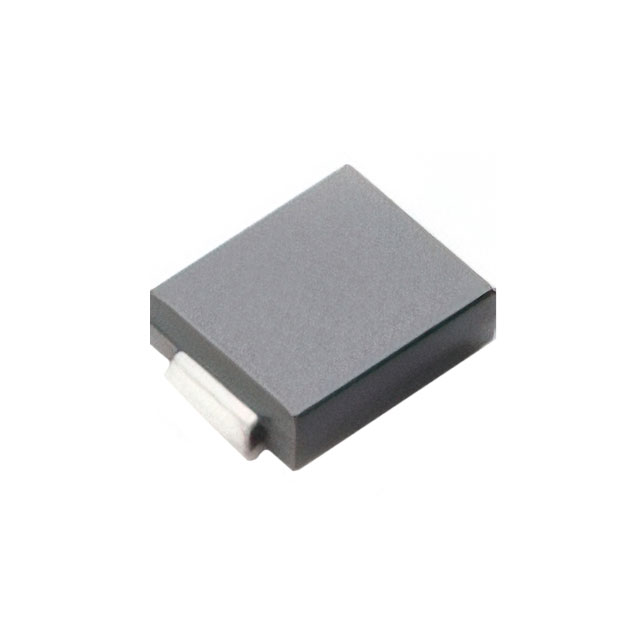

lmages are for reference only.Payment Methods
Delivery Services
13.4V Clamp 36A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Quick Inquiry
MSMBJSAC8.0
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | MSMBJSAC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 8V |
| Voltage - Breakdown (Min) | 8.89V |
| Voltage - Clamping (Max) @ Ipp | 13.4V |
| Current - Peak Pulse (10/1000µs) | 36A |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | MSMBJSAC8.0 | MSMBJSAC8.0/TR | MSMBJSAC8.0E3 | MSMBJSAC8.5 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | TVS DIODE 8VWM 13.4VC SMBJ | TVS DIODE 8VWM 13.4VC SMBJ | TVS DIODE 8VWM 13.4VC SMBJ | TVS DIODE 8.5VWM 14VC SMBJ |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Bulk |
