MSMLG120A

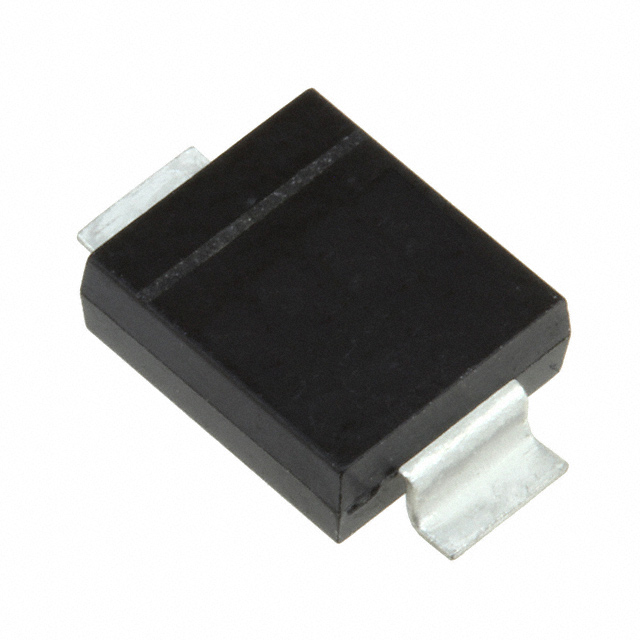

lmages are for reference only.MSMLG120A
TVS DIODE 120VWM 193VC SMLG
DatasheetDO-215AB, SMC Gull Wing
49,819 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
193V Clamp 15.6A Ipp Tvs Diode Surface Mount DO-215AB (SMLG)
MSMLG120A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 120V |
| Voltage - Breakdown (Min) | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V |
| Current - Peak Pulse (10/1000µs) | 15.6A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AB, SMC Gull Wing |
| Supplier Device Package | DO-215AB (SMLG) |
| Base Product Number | SMLG120 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
|
|
 |
| Part Number | MSMLG120A/TR | MSMLG120AE3 | MSMLG120AE3/TR | MSMLG120CA |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | TVS DIODE 120VWM 193VC SMLG | TVS DIODE 120VWM 193VC SMLG | TVS DIODE 120VWM 193VC SMLG | TVS DIODE 120VWM 193VC SMLG |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
