Magnetoresistive Sensor Angle, Rotary Position External Magnet, Not Included Wire Leads

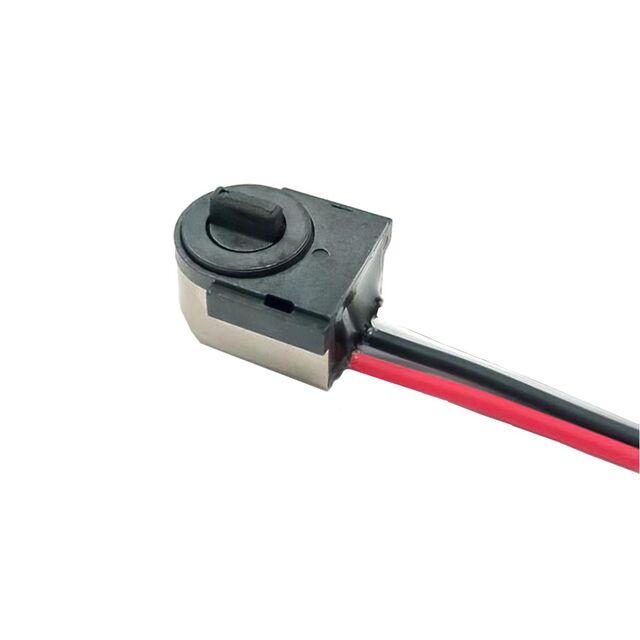

MSX360-1A-C0304-ERA270-05K
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | MSX360 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Rotary Position |
| Technology | Magnetoresistive |
| Rotation Angle - Electrical, Mechanical | 0° ~ 270° |
| Linear Range | - |
| Output | Analog |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1.5% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MSX360-1A-C0004-ERA360-05K | MSX360-1A-C0022-ERA090-05K | MSX360-1A-C0250-ERA180-05K | MLX90513GGO-CAA-100-SP |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MINIATURE HALL-EFFECT ROTARY POS | MINIATURE HALL-EFFECT ROTARY POS | MINIATURE HALL-EFFECT ROTARY POS | INDUCTIVE POSITION SENSOR ASSP W |
| Series | MSX360 | MSX360 | MSX360 | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
