MTSM1346SMF2-150
lmages are for reference only.MTSM1346SMF2-150
SENSOR PHOTODIODE 1300NM 8SMD
Datasheet8-SMD, No Lead
45,678 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Photodiode 1300nm 8-SMD, No Lead
MTSM1346SMF2-150
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | Marktech Optoelectronics |
| Series | 1346 InGaAs |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Wavelength | 1300nm |
| Color - Enhanced | - |
| Spectral Range | 600nm ~ 1750nm |
| Diode Type | PIN |
| Responsivity @ nm | 0.74 A/W @ 1650nm |
| Response Time | - |
| Voltage - DC Reverse (Vr) (Max) | 3 V |
| Current - Dark (Typ) | 26nA |
| Active Area | 1.5mm² |
| Viewing Angle | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

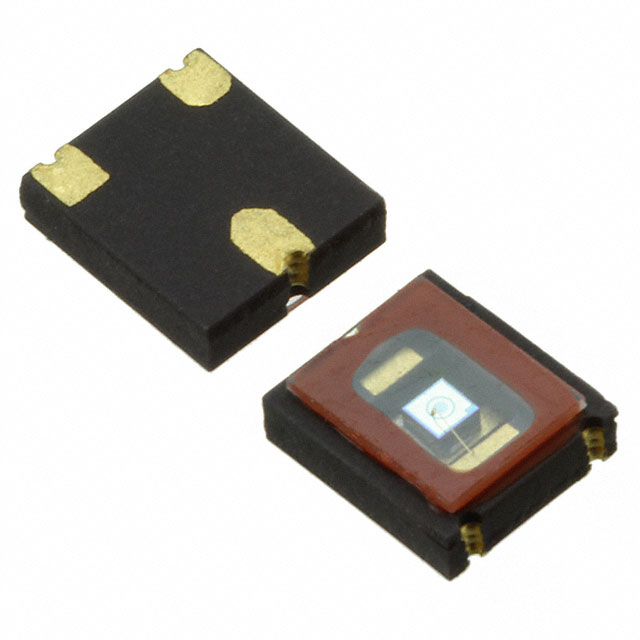

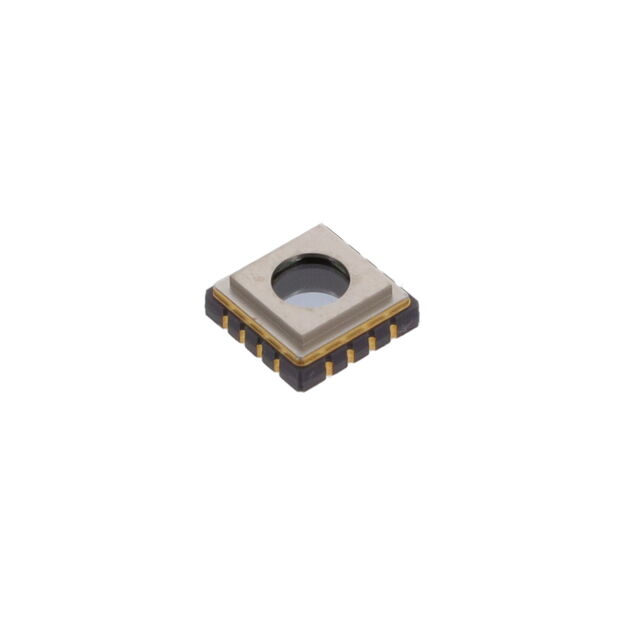

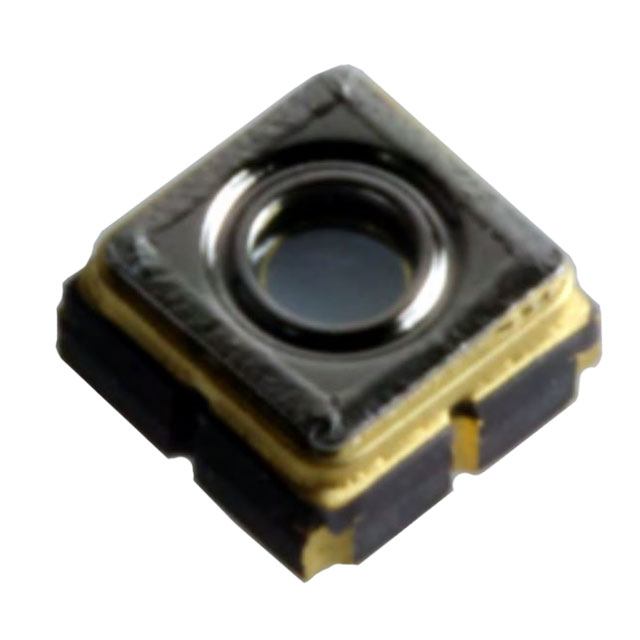

| Part Number | MTSM1346SMF1-030 | MTSM1346SMF1-100 | MTSM1346SMF3-300 | MTAPD-07-010 |
| Manufacturer | Marktech Optoelectronics | Marktech Optoelectronics | Marktech Optoelectronics | Marktech Optoelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Request inventory verification | RoHS Compliant |
| Description | SENSOR PHOTODIODE 1300NM 6SMD | SENSOR PHOTODIODE 1300NM 6SMD | 1700NM INGAAS PHOTO DIODE 3.0 AA | SENSOR PHOTODIODE 905NM 3LCC |
| Series | 1346 InGaAs | 1346 InGaAs | 1309 | - |
| Packaging | Bulk | Bulk | Bulk | Strip |
