MU10K55/10K00QTL
lmages are for reference only.MU10K55/10K00QTL
MU10K55/10K00QTL REELED
Datasheet1210 (3225 Metric)
83,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10k, 10.55k Ohm ±0.02% 50mW Power Per Element Voltage Divider 2 Resistor Network/Array ±5ppm/°C 1210 (3225 Metric)
MU10K55/10K00QTL
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | VPG Foil Resistors |
| Series | MU |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 10k, 10.55k |
| Tolerance | ±0.02% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.01% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 50mW |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -65°C ~ 150°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

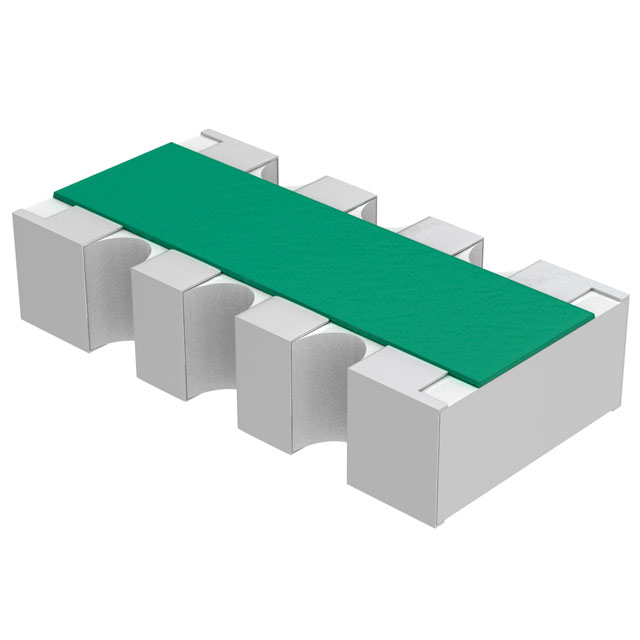

| Part Number | MNR14E0ABJ752 | MSP10C011K20GEJ | MPMT2003DT1 | MNR04MRAPJ121 |
| Manufacturer | Rohm Semiconductor | Vishay Dale | Vishay Dale Thin Film | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES ARRAY 4 RES 7.5K OHM 1206 | RES ARRAY 9 RES 1.2K OHM 10SIP | RES NTWRK 2 RES 100K, 100K OHM | RES ARRAY 4 RES 120 OHM 0804 |
| Series | MNR | MSP | MPM | MNR |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
