MUN12AD03-SE
lmages are for reference only.MUN12AD03-SE
DC DC CONVERTER 0.6-5.5V
Datasheet8-LQFN Exposed Pad, Module
75,513 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 3A 4.5V - 17V Input
MUN12AD03-SE
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-LQFN Exposed Pad, Module |
| Size / Dimension | 0.12" L x 0.11" W x 0.06" H (3.0mm x 2.8mm x 1.5mm) |
| Supplier Device Package | 8-QFN (3x2.8) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MUN12AD03 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

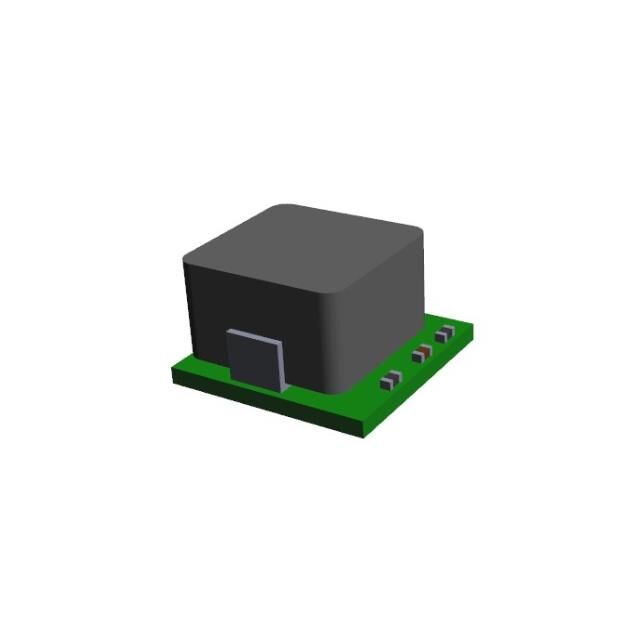

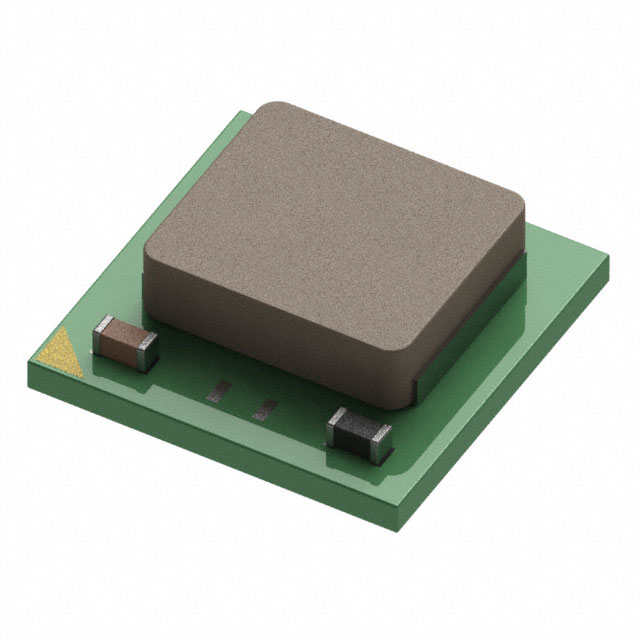

| Part Number | MUN12AD03-SEC | MUN12AD03-SECM | MUN12AD03-SH | MUN12AD03-SM |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 0.8-5.5V | POL 3A 12VIN DC-DC CONVERTER | DC DC CONVERTER 0.6-5V | POL 3A 12VIN DC-DC CONVERTER |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
