MUN3CAD03-JE
lmages are for reference only.MUN3CAD03-JE
POL 3A 5VIN DC-DC CONVERTER
Datasheet9-PowerTDFN Module
92,703 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 4V 3A 2.75V - 5.5V Input
MUN3CAD03-JE
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.75V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.6 ~ 4V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 12 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 94.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 9-PowerTDFN Module |
| Size / Dimension | 0.12" L x 0.11" W x 0.05" H (3.0mm x 2.8mm x 1.3mm) |
| Supplier Device Package | 8-QFN (3x2.8) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

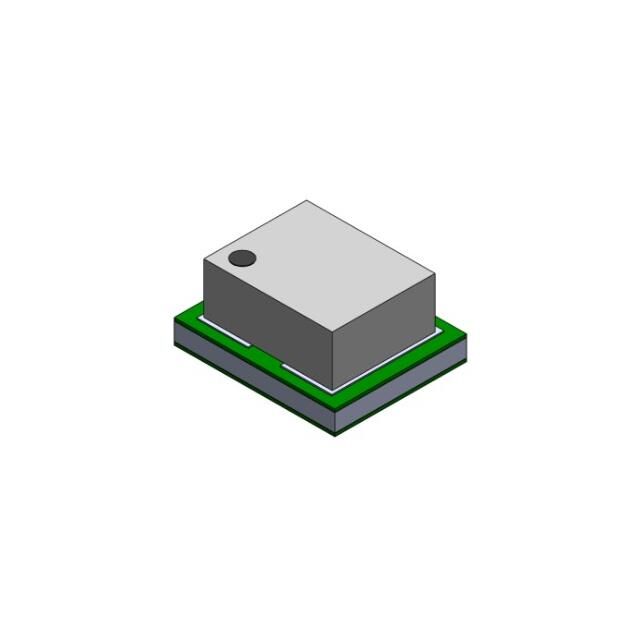

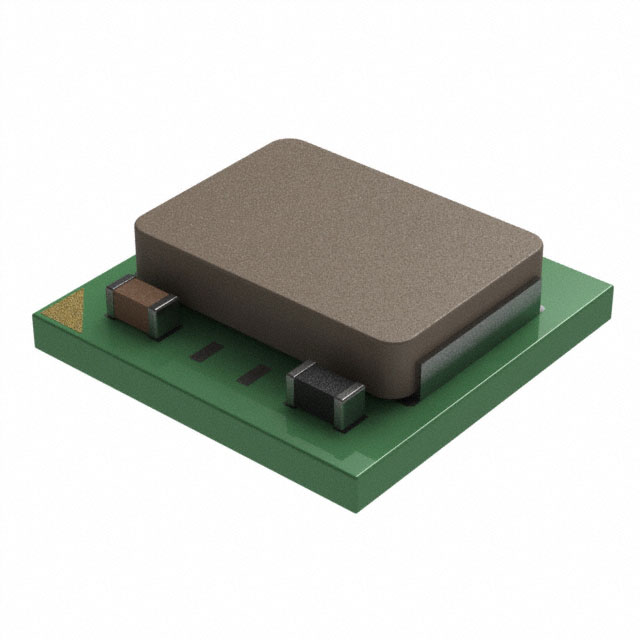

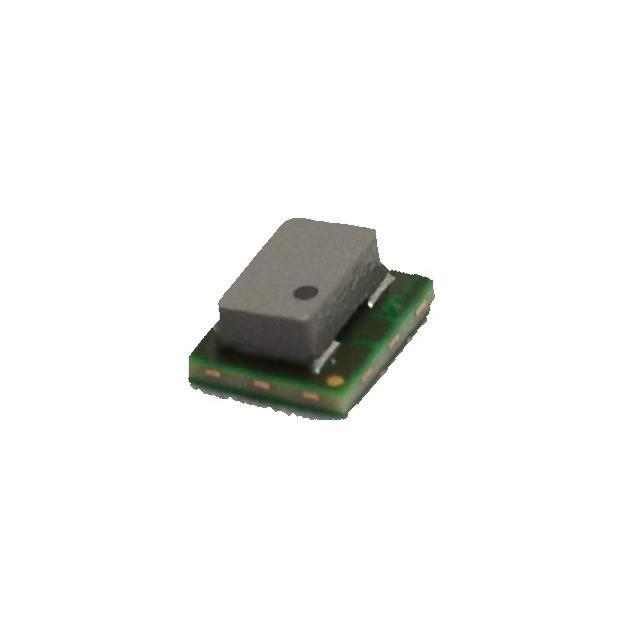

| Part Number | MUN3CAD03-JB | MUN3CAD03-SE | MUN3CAD03-SF | MUN3CAD01-SB |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | POL 3A 5VIN DC-DC CONVERTER | 3A 5VIN INDUCTOR-INTEGRATED DC-D | DC DC CONVERTER 0.6-3.3V | DC DC CONVERTER 0.8-4V |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
