MUZ30V,LF

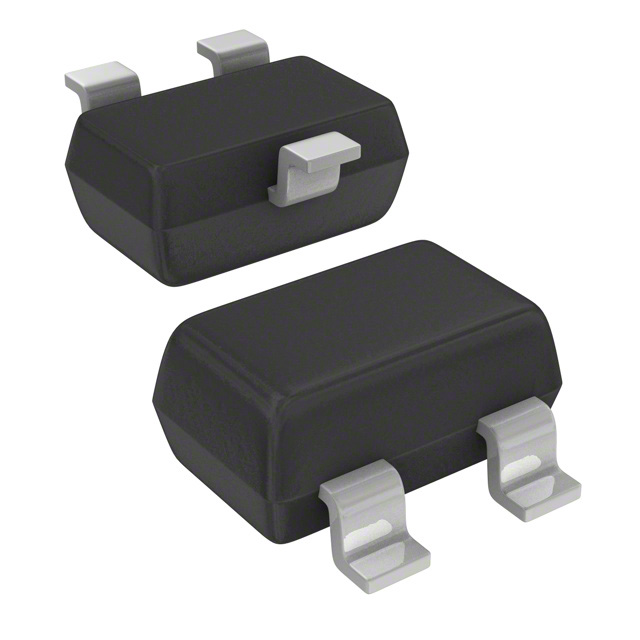

lmages are for reference only.MUZ30V,LF
TVS DIODE 30VWM 47.5VC USM
DatasheetSC-70, SOT-323
13,755 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47.5V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount USM
MUZ30V,LF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | MUZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 28V |
| Voltage - Clamping (Max) @ Ipp | 47.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 21pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | USM |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MUZ12V,LF | MUZ16V,LF | MUZ20V,LF | MUZ24V,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 26VC USM | TVS DIODE 16VWM 27VC USM | TVS DIODE 20VWM 30.5VC USM | TVS DIODE 24VWM 36.5VC USM |
| Series | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
