MW2G680MNN1625A4E

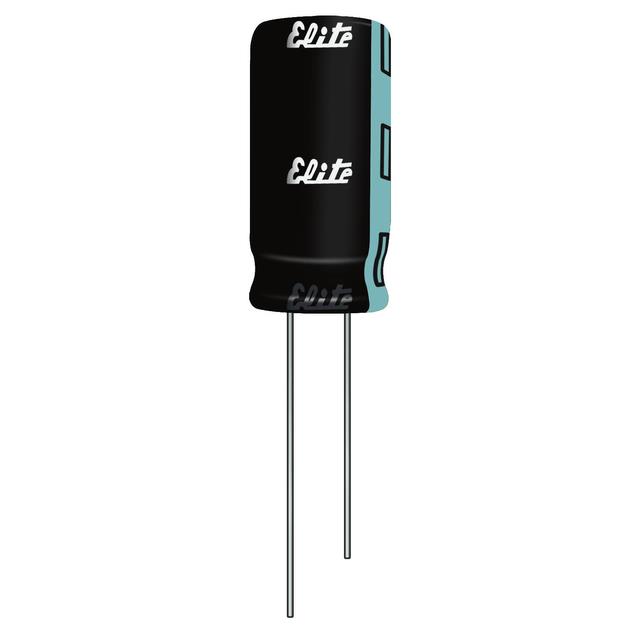

lmages are for reference only.MW2G680MNN1625A4E
CAP ALUM 68UF 20% 400V RADIAL TH
DatasheetRadial, Can
13,717 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
MW2G680MNN1625A4E
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | MW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 621.5 mA @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 400 mOhms |
| Product Attribute |  |
 |
|
 |
| Part Number | MW2G680MNN1623 | MW2E220MNN1016R | MW2E220MNN1016R | MW2G100MNN0816 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 68UF 20% 400V RADIAL TH | CAP ALUM 22UF 20% 250V RADIAL TH | CAP ALUM 22UF 20% 250V RADIAL TH | CAP ALUM 10UF 20% 400V RADIAL TH |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
