MW2S820MNN1825A4EF3
lmages are for reference only.MW2S820MNN1825A4EF3
CAP ALUM 82UF 20% 420V RADIAL TH
DatasheetRadial, Can
88,651 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
MW2S820MNN1825A4EF3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | MW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700.6 mA @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 400 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | MW2S100MNN1015 | MW2S101MNN1630A4E | MW2S121MNN1830A4ES | MW2S151MNN1835 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

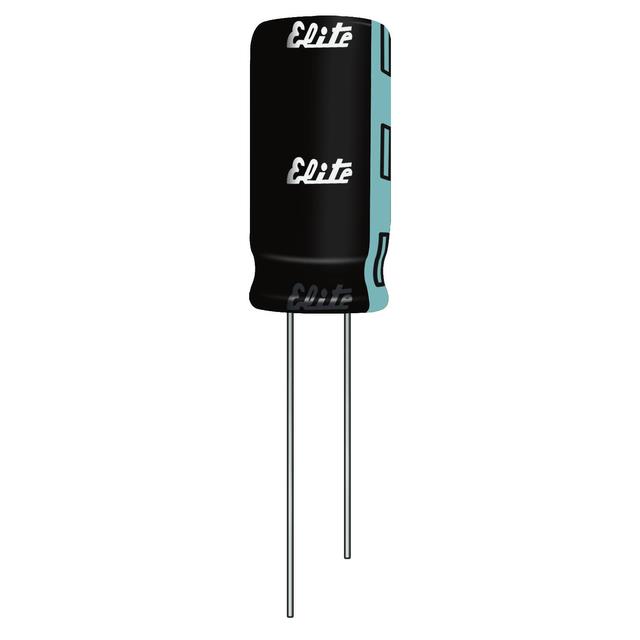

| Description | CAP ALUM 10UF 20% 420V RADIAL TH | CAP ALUM 100UF 20% 420V RADIAL | CAP ALUM 120UF 20% 420V RADIAL | CAP ALUM 150UF 20% 420V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
