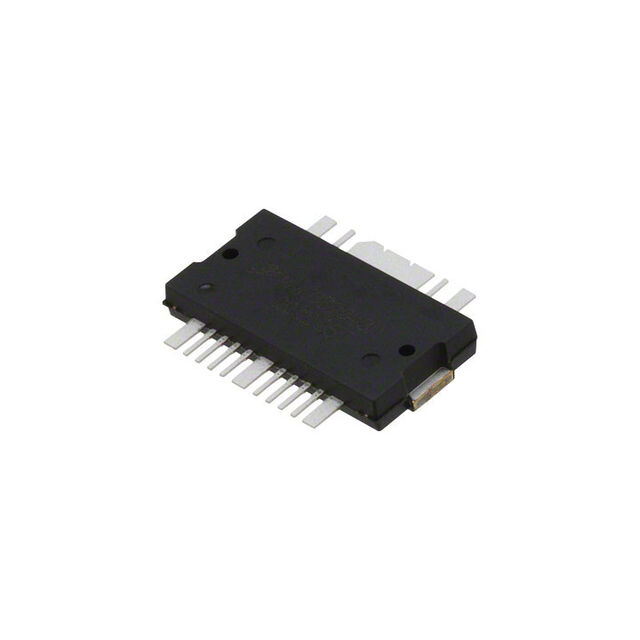

MW7IC2220NR1
lmages are for reference only.MW7IC2220NR1
IC AMP WCDMA 2GHZ-2.2GHZ TO270WB
DatasheetTO-270-16 Variant, Flat Leads
91,914 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC WCDMA 2GHz ~ 2.2GHz TO-270WB-16
MW7IC2220NR1
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Frequency | 2GHz ~ 2.2GHz |
| P1dB | - |
| Gain | 34dB |
| Noise Figure | - |
| RF Type | WCDMA |
| Voltage - Supply | 24V ~ 32V |
| Current - Supply | 300mA |
| Test Frequency | 2.14GHz |
| Mounting Type | - |
| Package / Case | TO-270-16 Variant, Flat Leads |
| Supplier Device Package | TO-270WB-16 |
| Base Product Number | MW7IC |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | MW7IC2220NR1 | MW7IC2220GNR1 | MW7IC2220GNR1 | MW7IC2220NBR1 |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP W-CDMA 2.11-2.17GHZ TO270 | IC AMP W-CDMA 2.11-2.17GHZ TO270 | IC AMP W-CDMA 2.11-2.17GHZ TO270 | IC AMP CDMA 2.11-2.17GHZ TO272WB |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
