MWSA1204S-2R2MT

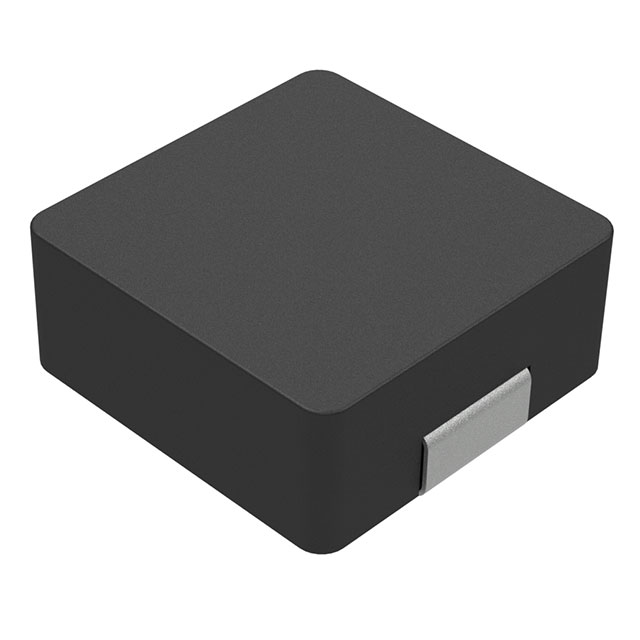

lmages are for reference only.MWSA1204S-2R2MT
FIXED IND 2.2UH 18A 11.5MOHM SMD
DatasheetNonstandard
22,500 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Shielded Drum Core, Wirewound Inductor 18 A 11.5mOhm Max Nonstandard
MWSA1204S-2R2MT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSA-S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 26A |
| Shielding | Shielded |
| DC Resistance (DCR) | 11.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.504" W (13.45mm x 12.80mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Base Product Number | MWSA1204S |
| Product Attribute |  |
 |
 |
 |
