MWSD1005C20NGTM81
lmages are for reference only.MWSD1005C20NGTM81
FIXED IND 20NH 800MA 186MOHM SMD
Datasheet0402 (1005 Metric)
53,362 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 nH Unshielded Drum Core, Wirewound Inductor 800 mA 186mOhm Max 0402 (1005 Metric)
MWSD1005C20NGTM81
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSD-C-M8X |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 20 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 186mOhm Max |
| Q @ Freq | 30 @ 250MHz |
| Frequency - Self Resonant | 4.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.043" L x 0.021" W (1.10mm x 0.53mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | MWSD1005C20 |
| Product Attribute |  |
 |
|
 |

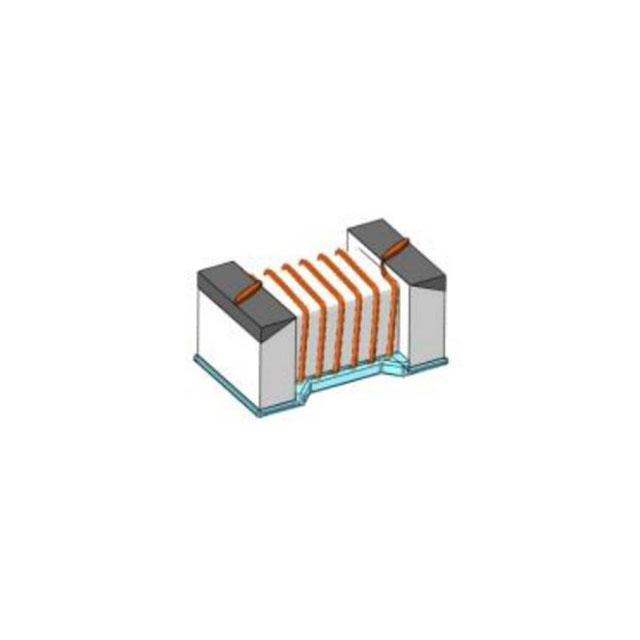

| Part Number | MWSD1005C20NGT | MWSD1005C20NGTM01 | MWSD1005C20NGTM81 | MWSD1005C20NHT |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 20NH 400MA 240MOHM SMD | FIXED IND 20NH 370MA 270MOHM SMD | FIXED IND 20NH 800MA 186MOHM SMD | FIXED IND 20NH 400MA 240MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
