MWSD1005CH56NKSTF

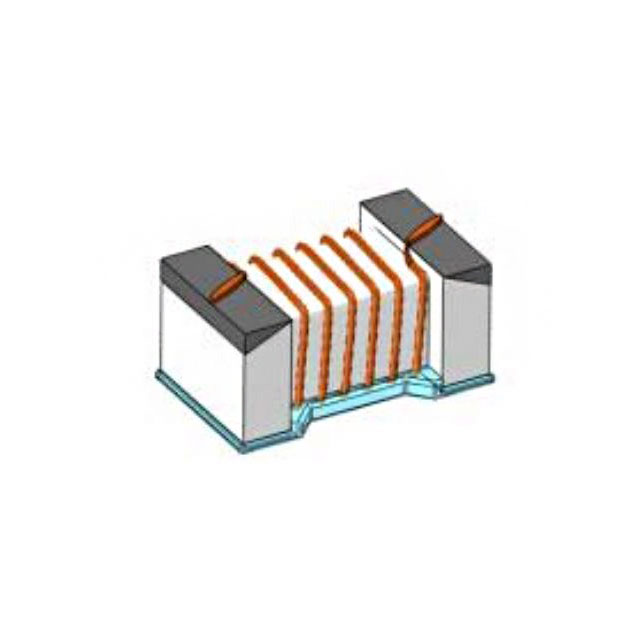

lmages are for reference only.MWSD1005CH56NKSTF
FIXED IND 56NH 330A 900MOHM SMD
Datasheet0402 (1005 Metric)
59,972 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 nH Unshielded Drum Core, Wirewound Inductor 330 mA 900mOhm Max 0402 (1005 Metric)
MWSD1005CH56NKSTF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSD-CH |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 56 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 900mOhm Max |
| Q @ Freq | 31 @ 250MHz |
| Frequency - Self Resonant | 2.07GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | MWSD1005CH5 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MWSD1005CH56NGSTF | MWSD1005CH56NHSTF | MWSD1005CH56NJSTF | MWSD1005C0N8BT |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 56NH 330A 900MOHM SMD | FIXED IND 56NH 330A 900MOHM SMD | FIXED IND 56NH 330A 900MOHM SMD | FIXED IND 0.8NH 1A 35 MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
