MWSD1005CP7N5GSTF
lmages are for reference only.MWSD1005CP7N5GSTF
FIXED IND 7.5NH 1.4A 80MOHM SMD
Datasheet0402 (1005 Metric)
24,408 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.5 nH Unshielded Drum Core, Wirewound Inductor 1.4 A 80mOhm Max 0402 (1005 Metric)
MWSD1005CP7N5GSTF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | MWSD-CP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 7.5 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 26 @ 250MHz |
| Frequency - Self Resonant | 5.4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Base Product Number | MWSD1005CP7 |
| Product Attribute |  |
 |
 |
 |

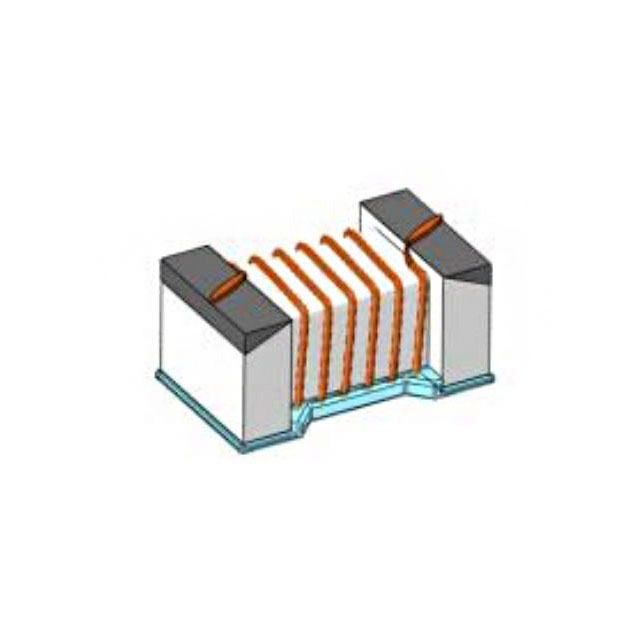

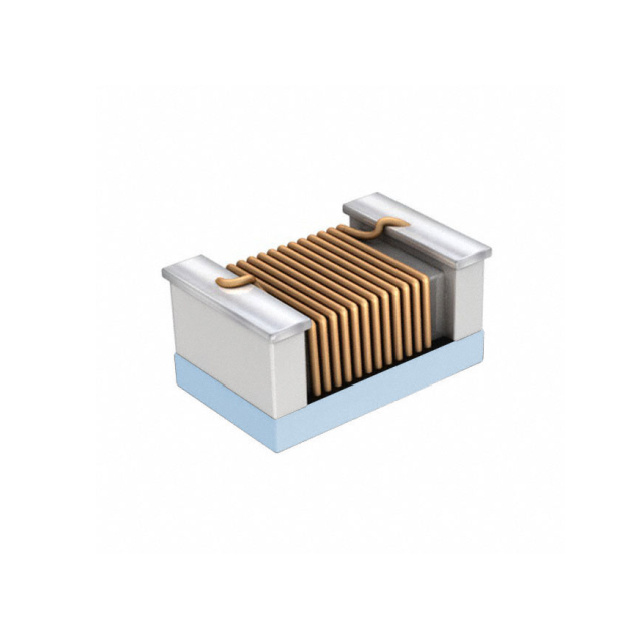

| Part Number | MWSD1005CP7N5HSTF | MWSD1005CP7N5JSTF | MWSD1005CP7N5KSTF | MWSD1005C0N8BT |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 7.5NH 1.4A 80MOHM SMD | FIXED IND 7.5NH0.08OHM 1400MA | FIXED IND 7.5NH 1.4A 80MOHM SMD | FIXED IND 0.8NH 1A 35 MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
