MYMGK1R820ERSR

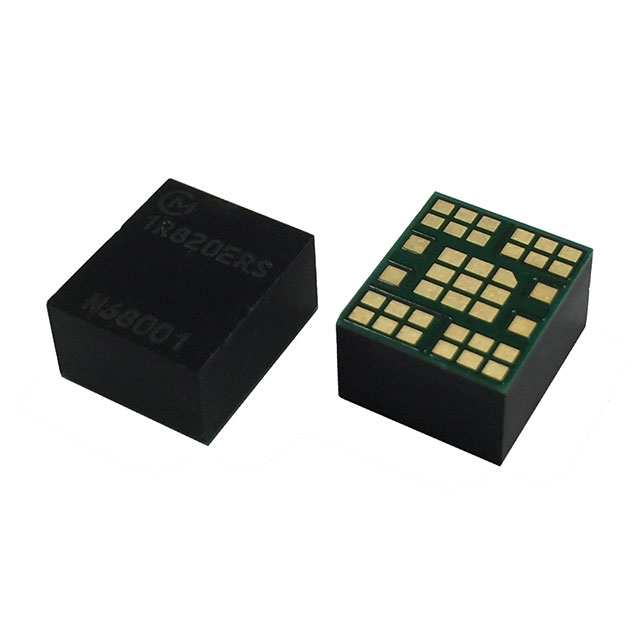

lmages are for reference only.MYMGK1R820ERSR
DC DC CONVERTER 0.7-1.8V
Datasheet37-SMD Module
34,021 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 20A 8V - 14V Input
MYMGK1R820ERSR
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MonoBlock MYMGK |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.7 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 37-SMD Module |
| Size / Dimension | 0.41" L x 0.35" W x 0.22" H (10.5mm x 9.0mm x 5.6mm) |
| Supplier Device Package | Module |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MYMGK1R8 |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
 |
| Part Number | MYMGK1R820ERSR | MYMGK1R820ERSR-H | MYMGK1R820ERSR-HD | MYMGK1R820ERSRD |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.7-1.8V | 20A, NON-ISOLATED POL DC/DC CONV | 20A, NON-ISOLATED POL DC/DC CONV | POWERM |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
