MZA1210D330C
lmages are for reference only.MZA1210D330C
FERRITE BEAD 33 OHM 0504 2LN
Datasheet0504 (1210 Metric), Array, 4 PC Pad
57,785 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 Ohms @ 100 MHz 2 Signal Line Ferrite Bead 0504 (1210 Metric), Array, 4 PC Pad 50mA 300mOhm
MZA1210D330C
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MZA |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 33 Ohms @ 100 MHz |
| Current Rating (Max) | 50mA |
| DC Resistance (DCR) (Max) | 300mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0504 (1210 Metric), Array, 4 PC Pad |
| Mounting Type | Surface Mount |
| Height (Max) | 0.024" (0.60mm) |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

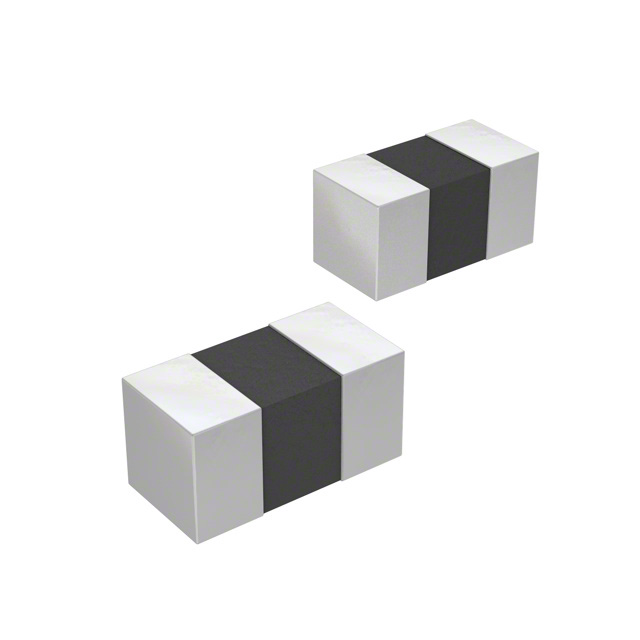

| Part Number | MZA1210D121C | MZA1210D241C | MZA1210D680C | MZ1608-102Y |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | FERRITE BEAD 120 OHM 0504 2LN | FERRITE BEAD 240 OHM 0504 2LN | FERRITE BEAD 68 OHM 0504 2LN | FERRITE BEAD 1 KOHM 0603 1LN |
| Series | MZA | MZA | MZA | MZ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
