8051 N76 Microcontroller IC 8-Bit 16MHz 18KB (18K x 8) FLASH 20-QFN (3x3)
N76E003BQ20
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Nuvoton Technology Corporation |
| Series | N76 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I2S, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 18KB (18K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (3x3) |
| Package / Case | 20-WFQFN Exposed Pad |
| Base Product Number | N76E003 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
 |
| Part Number | N76E003AQ20 | N76E003AS20 | N76E003AT20 | NANO100LE3BN |
| Manufacturer | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

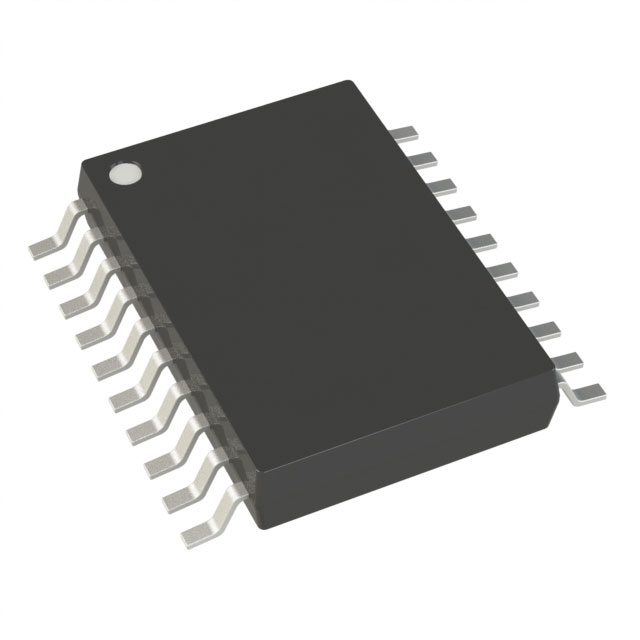

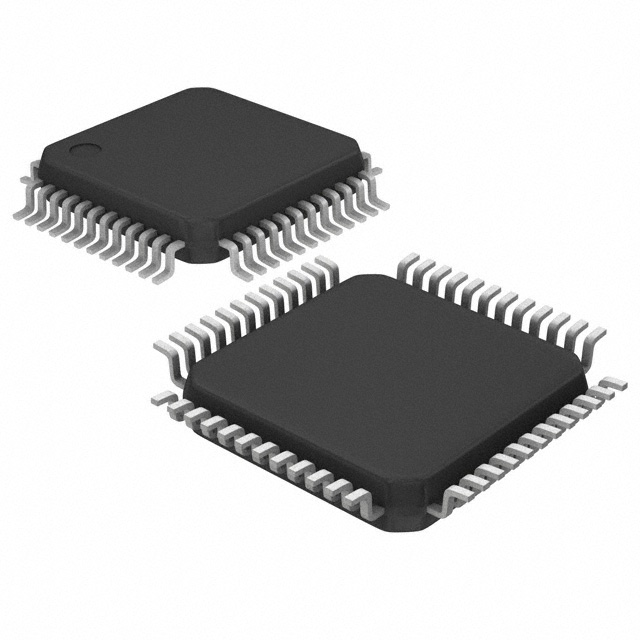

| Description | IC MCU 8BIT 18KB FLASH 20QFN | LOW PIN COUNT 8051 SERIES; 2.4V | IC MCU 8BIT 18KB FLASH 20TSSOP | IC MCU 32BIT 128KB FLASH 48LQFP |
| Series | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation | Nuvoton Technology Corporation |
| Packaging | Tape & Reel (TR) | Tray | Tube | Tray |
