NA-100M-6820
lmages are for reference only.Payment Methods
Delivery Services

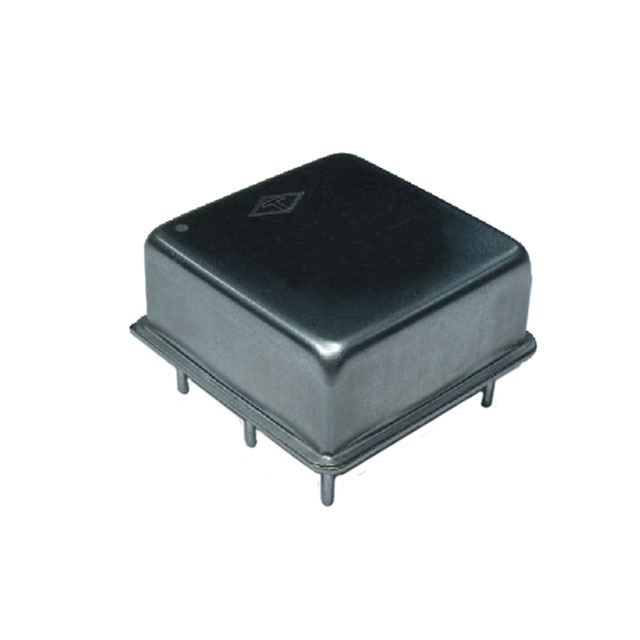

100 MHz OCXO Sine Wave Oscillator 12V 8-DIP, 4 Leads (Half Size, Metal Can)
NA-100M-6820
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Taitien |
| Series | NA-100M-6800 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 100 MHz |
| Function | - |
| Output | Sine Wave |
| Voltage - Supply | 12V |
| Frequency Stability | ±100ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 380mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) |
| Size / Dimension | 1.015" L x 1.015" W (25.78mm x 25.78mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
|
| Part Number | NA-100M-6821 | NA-100M-6822 | NA-100M-6800 | NA-100M-6801 |
| Manufacturer | Taitien | Taitien | Taitien | Taitien |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC OCXO 100.0000MHZ SNWV | XTAL OSC OCXO 100.0000MHZ SNWV | XTAL OSC OCXO 100.0000MHZ SNWV | XTAL OSC OCXO 100.0000MHZ SNWV |
| Series | Taitien | Taitien | Taitien | Taitien |
| Packaging | Box | Box | Box | Box |
