NANOASMDCH035F-2
lmages are for reference only.NANOASMDCH035F-2
PTC RESET FUSE 16V 350MA 1206
Datasheet1206 (3216 Metric), Concave
105,646 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 16V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
NANOASMDCH035F-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | PolySwitch®, nanoASMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Trip (It) | 950 mA |
| Current - Max | 50 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.134" L x 0.071" W (3.40mm x 1.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.14mm) |
| Lead Spacing | - |
| Approval Agency | - |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 200 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.6 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

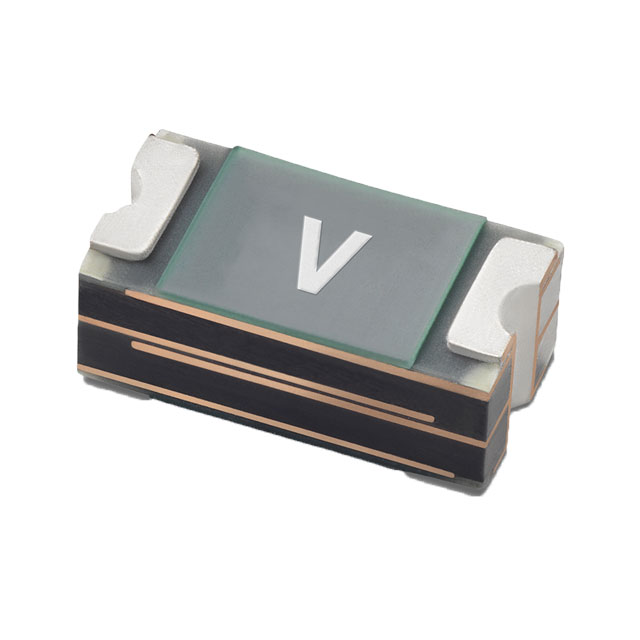

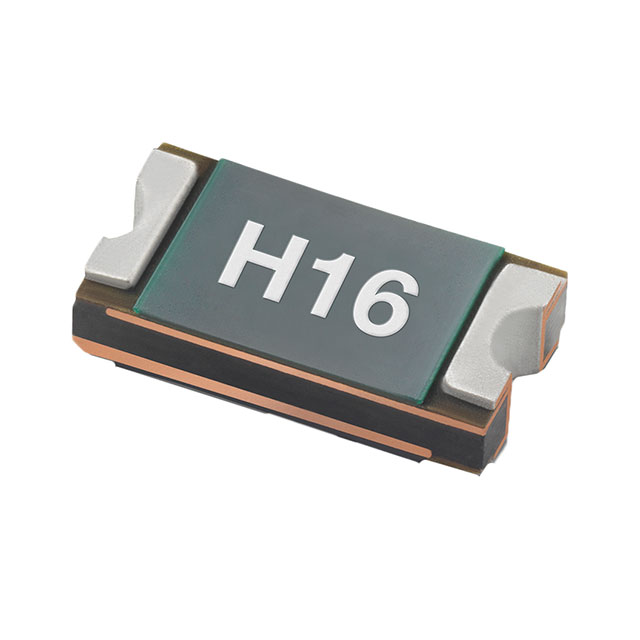

| Part Number | NANOASMDCH035F/30-2 | NANOASMDCH010F-2 | NANOASMDCH016F-2 | NANOASMDCH020F-2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | PTC RESET FUSE 30V 350MA 1206 | PPTC-MINI-PSW | PTC RESET FUSE 30V 160MA 1206 | PPTC-MINI-PSW |
| Series | PolySwitch®, ASMD | PolySwitch®nanoASMDCH | PolySwitch®, ASMD | PolySwitch®, nanoASMDC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> |
